ttl跑码一半就停止了,麻烦大佬看着

suyib76 · 发表于 2025-11-5 21:25

如下

suyib76 · 发表于 2025-11-5 21:36

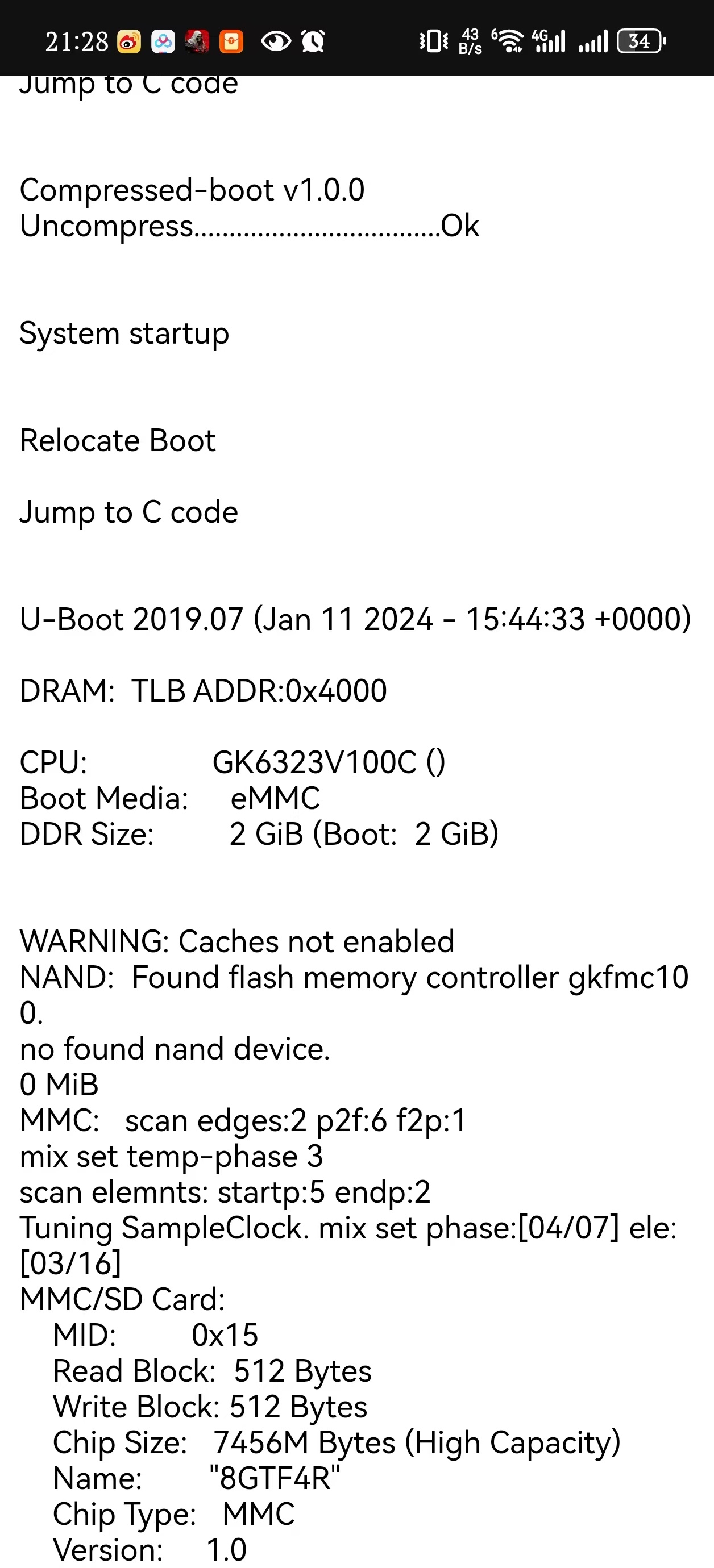

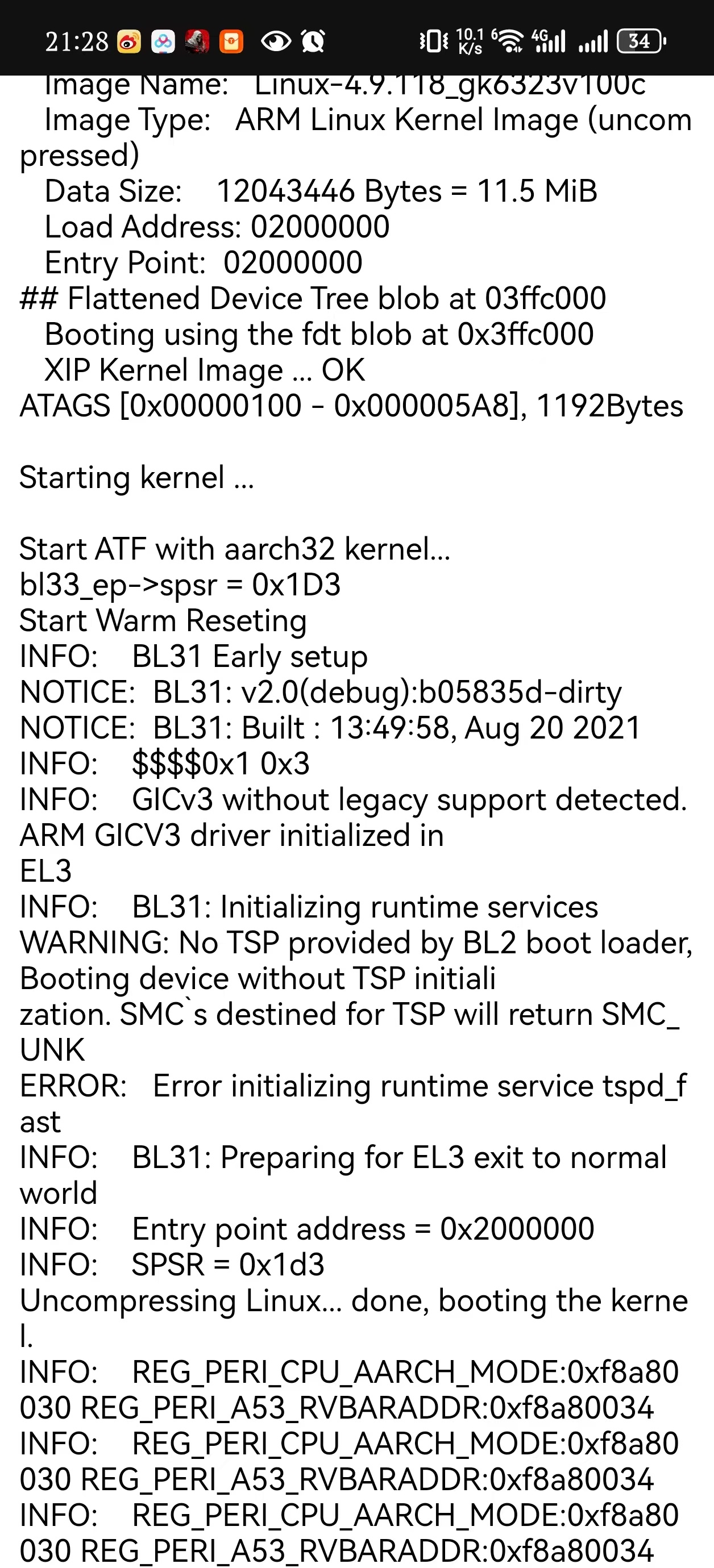

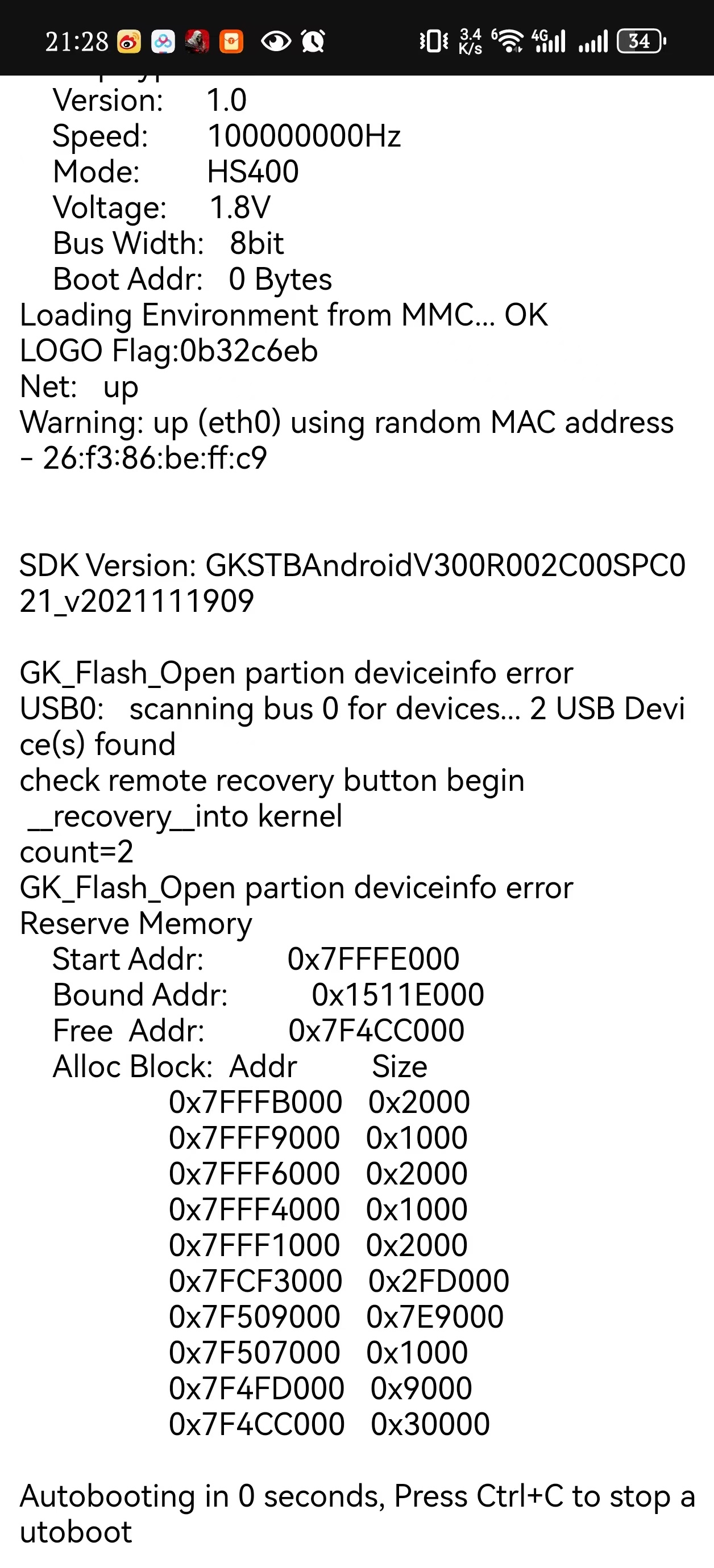

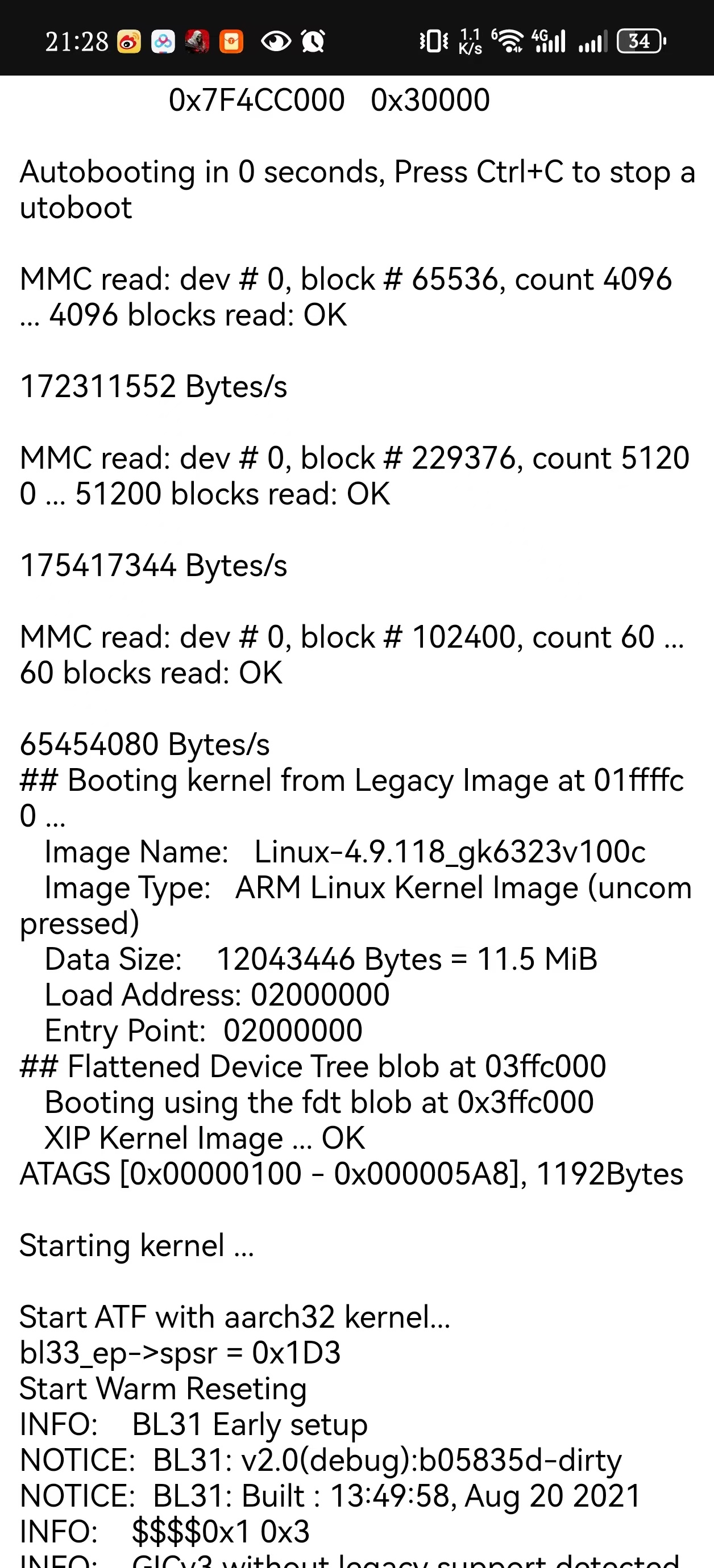

如图

suyib76 · 发表于 2025-11-5 21:26

Bootrom start
Boot Media: eMMC (Default Speed)
Decrypt auxiliary code ...OK

lsadc voltage min: 000000C7, max: 000000CC, aver: 000000C8, index: 00000006

Enter boot auxiliary code

Auxiliary code - v1.00
DDR code - V2.2.3 20210506
Build: Oct 27 2021 - 09:33:15

Reg Version:  v1.0.3`
Reg Time:    2022/11/18 20:44:11
Reg Name:    gk6323v100crbb_gk6323v100c_LPDDR4-2133_4GB_32bitx1_2layers.reg

HPM: 0x000000FA
SVB done...
DDR HW training...
DDR SW training...
Set cpu freq

Boot auxiliary code success
Bootrom success

System startup

Relocate Boot

Jump to C code

Compressed-boot v1.0.0
Uncompress...................................Ok

System startup

Relocate Boot

Jump to C code

U-Boot 2019.07 (Jan 11 2024 - 15:44:33 +0000)

DRAM:  TLB ADDR:0x4000

suyib76 · 发表于 2025-11-5 21:27

Uncompressing Linux... done, booting the kernel.
INFO: REG_PERI_CPU_AARCH_MODE:0xf8a80030 REG_PERI_A53_RVBARADDR:0xf8a80034
INFO: REG_PERI_CPU_AARCH_MODE:0xf8a80030 REG_PERI_A53_RVBARADDR:0xf8a80034
INFO: REG_PERI_CPU_AARCH_MODE:0xf8a80030 REG_PERI_A53_RVBARADDR:0xf8a8003

1337565980 · 发表于 2025-11-5 22:00

suyib76 发表于 2025-11-5 21:27
Uncompressing Linux... done, booting the kernel.
INFO: REG_PERI_CPU_AARCH_MODE:0xf8a80030 REG_PE ...

正常啊，这个是原包被换了桌面的情况。

suyib76 · 发表于 2025-11-5 22:27

怎么没有分区信息呢

suyib76 · 发表于 2025-11-5 22:28

1337565980 发表于 2025-11-5 22:00
正常啊，这个是原包被换了桌面的情况。

怎么没有分区信息呢

suyib76 · 发表于 2025-11-5 23:55

已解决，CTRL+C到fastboot模式后，输入printenv ，可以查看分区信息

lhx19591216 · 发表于 2025-12-12 07:39

感谢楼主的分享。

lhx19591216 · 发表于 2025-12-12 07:39
