创维E900更新失败，现在只有声音没有图像，求修复，求刷机

11651189 · 发表于 2016-12-14 13:41

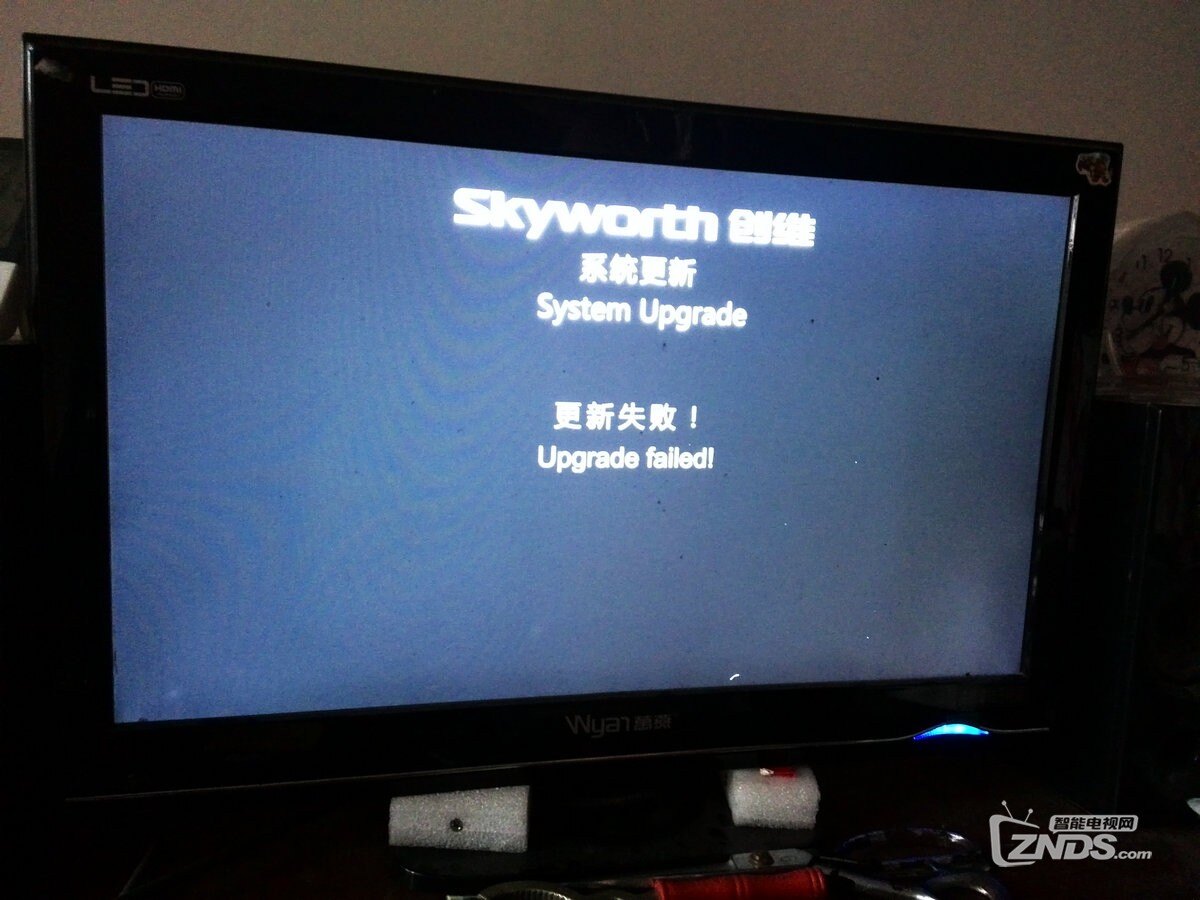

创维E900更新失败，现在只有声音没有图像，求修复，求刷机。

   家里的ITV盒子是创维E900，之前破解后安装了“RE文件管理器”和“电视家”等第三方软件。2016年11月底，盒子通过ITV光纤自动下载升级包，自动更新失败。机器重启（或手动开机）刚进入桌面就提示下载升级包，除了“确定”，无任何选择余地，然后反复下载升级包，反复更新失败。取掉连接光纤的网线后开机，正常进入桌面，但发现播放本地任何格式的视频，都只有声音没有图像。
   做了以下一些补救措施，一无所获：
   1.恢复出厂设置，丢失了ITV账号密码。
   2.网上找到广东电信版E900升级包update.zip(385M)，手动升级，依然更新失败。
   3.把通过光纤自动下载的官方升级包update.zip(92M)复制出来，手动升级，依然更新失败。

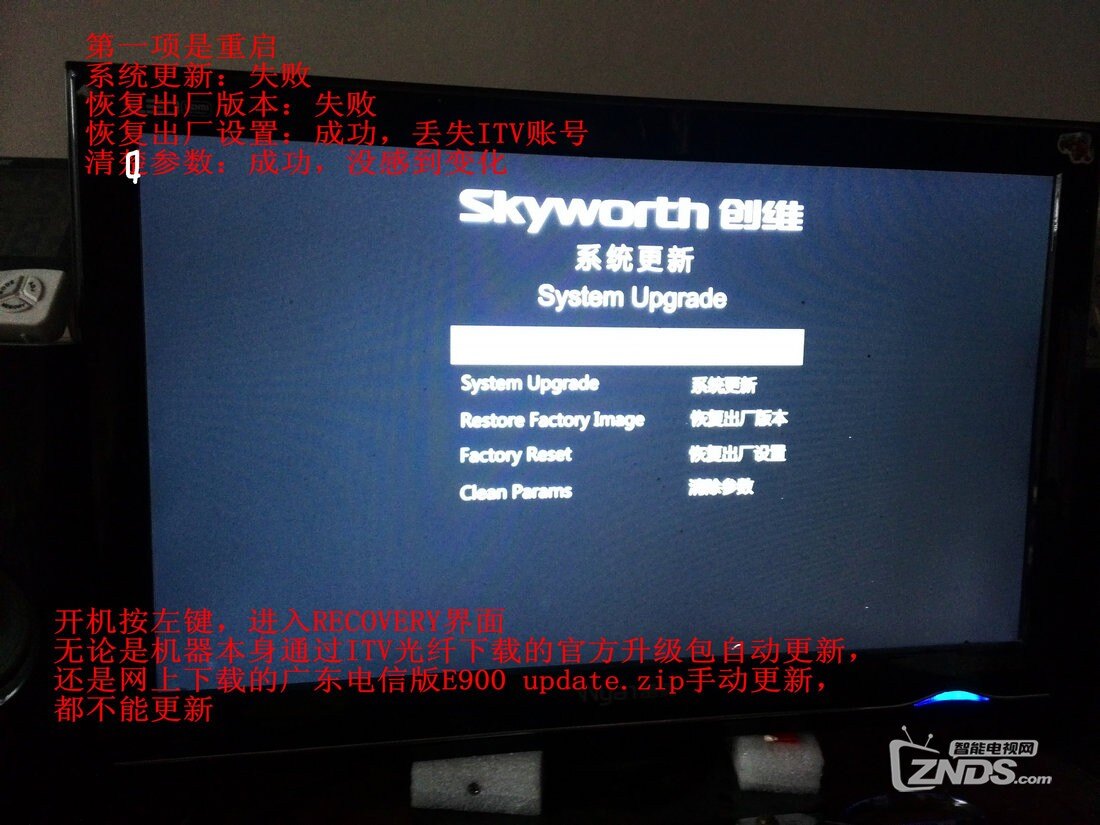

   4.开机狂按遥控左键进入RECOVERY界面，里面各选项都做了几遍，问题依旧。

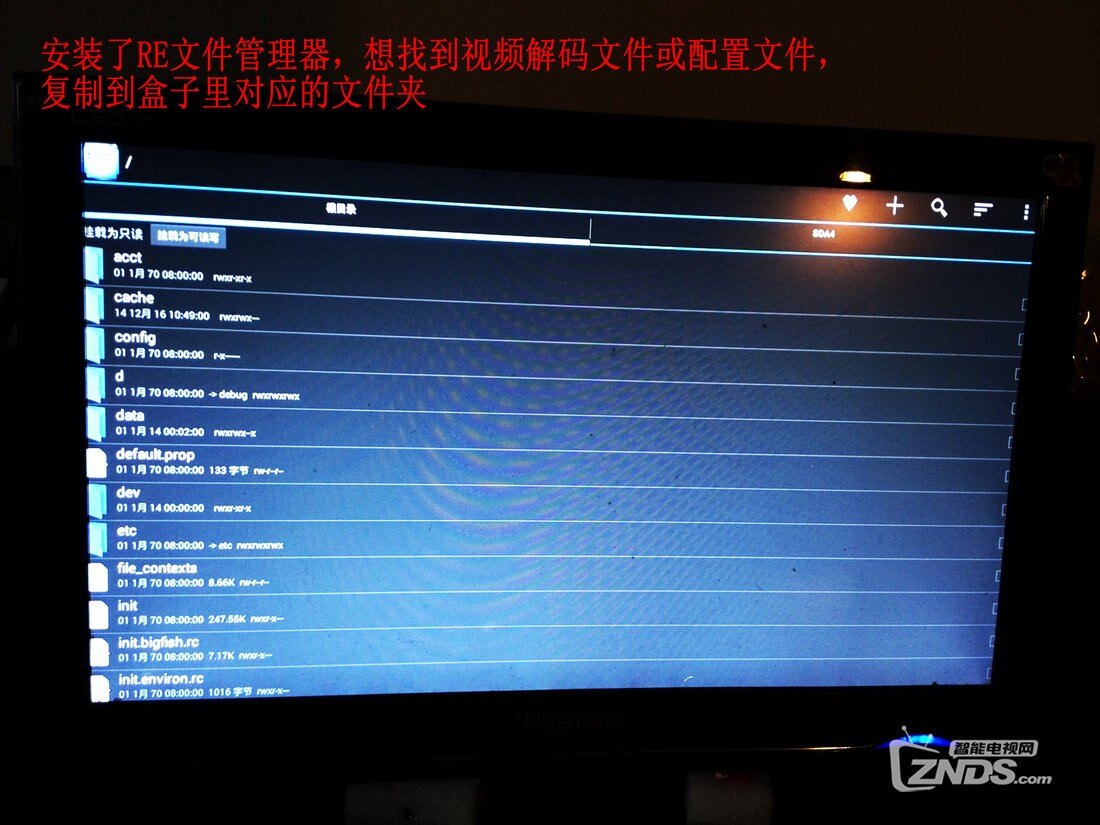

      现在用RE文件管理器进入盒子/SYSTEM/APP目录下删除Skyupdate.apk文件，盒子联网开机不再自动升级更新。盒子连接家里WIFI，打开电视家看直播，正常操控，正常进入播放状态，正常换台，只能听见声音，不能看见图像。
      我是没辙了，个人认为是盒子视频解码文件（或者视频配置文件）丢失导致的问题，希望能找出丢失了哪些视频解码文件（或者视频配置文件），以便我从另外的E900机器中复制到有问题的机器中去。我现在不求系统能升级更新，不打算看ITV，只求能播放视频，能看到画面。求助各位大神，指出修复方法。求E900升级包，线刷包。
      以下是图片：


下载附件保存到相册

2016-12-14 13:41 上传


下载附件保存到相册

2016-12-14 13:41 上传


下载附件保存到相册

2016-12-14 13:41 上传


下载附件保存到相册

2016-12-14 13:41 上传


下载附件保存到相册

2016-12-14 13:41 上传

匿名 *发表于 2016-12-19 09:10* · 发表于 2016-12-19 09:10

如果还有其他问题，直接加我的Q 930616736吧！

匿名 *发表于 2016-12-19 09:05* · 发表于 2016-12-19 09:05

11651189 发表于 2016-12-17 11:59
我有两个E900，另一个没拆，完全正常使用。盒子自身的recovery功能只限于升级和恢复设置，没有备份功能。 ...

你说的都是可以实现的！
1.在root@Hi3798MV100下面的话，通过dd命令强制把分区写入数据，例如你用print得到一个bootargs的信息，得到boot在第一个位置，bootargs在第二个位置，recovery在第三个等等，你就可以用 busybox dd if=/mnt/sda/sda1/xxx.img(u盘默认挂载目录) of=/dev/block/mmcblk0pxxx（xxx表示第几个分区，例如revocery就选择3，其他依次对应），同样，你也可以用这个命令，把那个位置的镜像给拷贝出来，只是if 和 of的位置互换
2.如果在fastboot下面的话，就得用mmc read命令，读取对应的内存的信息，然后用tftp拷贝出来
比如我们要把revocery拷贝出来的话，就用mmc read 0(设备号：表示机顶盒) 0x1ffbfc0（读取到内存的位置） 0x1000(16进制的多少块，一块代表512字节，revocery前面有2个分区占2M，所以就是2M/512换算成16进制) 0x5000（revocery分区的大小）完整的就是 mmc read 0 0x1ffbfc0 0x1000 0x5000
然后用tftp传给电脑，这个mmc的我很少用，只是在linux下面用过nand read

匿名 *发表于 2016-12-19 08:53* · 发表于 2016-12-19 08:53

11651189 发表于 2016-12-16 23:31
看来您是专家，太感谢您了。不过我是小白，看了您的回帖，花好久时间才知道通过TTL线连接盒子时按Ctrl+C进 ...

U盘里面只能有一个updata.zip，否则升级不知道选择哪个给你刷机，确认你的升级包是你这个一样的话，还是按照刚才的输入usb start ，然后输入mmc read 0 0x1FFBFC0 0x1000 0x5000; bootm 0x1FFBFC0！就可以自动刷机了，刷机完成就升级好了！

11651189 · 发表于 2016-12-14 13:45

补充说明，改机器配置：
CPU：HI3798MV100
RAM：1G
ROM：4G

11651189 · 发表于 2016-12-14 13:55

下面是通过TTL实录盒子自动更新时的状况：

root@Hi3798MV100:/ #
root@Hi3798MV100:/ #
root@Hi3798MV100:/ # （说明：这之前是盒子开机联网后自动下载升级包，下载完成后自动重启）
SysRq : Emergency Remount R/O
EXT4-fs (mmcblk0p18): re-mounted. Opts: (null)
EXT4-fs (mmcblk0p19): re-mounted. Opts: (null)
EXT4-fs (mmcblk0p23): re-mounted. Opts: (null)
EXT4-fs (mmcblk0p21): re-mounted. Opts: (null)
Emergency Remount complete
Restarting system with command 'recovery'.
CPU will restart.t
Bootrom start
Boot from eMMC
Initializing DDR ... OK
Starting DDR training ... OK
Starting fastboot ...
System startup
Reg Version:  v1.1.0
Reg Time:    2016/1/18  14:01:18
Reg Name:    hi3798mdmo1g_hi3798mv100_ddr3_1gbyte_16bitx2_4layers_emmc.reg
Relocate Boot to DDR
Jump to DDR
Compressed-boot v1.0.0
Uncompress........................Ok
System startup
Reg Version:  v1.1.0
Reg Time:    2016/1/18  14:01:18
Reg Name:    hi3798mdmo1g_hi3798mv100_ddr3_1gbyte_16bitx2_4layers_emmc.reg
Relocate Boot to DDR

Jump to DDR

Fastboot 3.3.0 (wujiaxi@RD4TEAM) (Feb 03 2016 - 08:31:35)
Fastboot:    Version 3.3.0
Build Date: Feb  3 2016, 08:32:13
CPU:          Hi3798Mv100 (CA)
Boot Media: eMMC
DDR Size:    1GB

Check nand flash controller v610. found
Special NAND id table Version 1.36
Nand ID: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
No NAND device found!!!

MMC/SD controller initialization.
MMC/SD Card:
MID:       0x15
Read Block:  512 Bytes
Write Block: 512 Bytes
Chip Size: 3728M Bytes (High Capacity)
Name:       "4FPD3"
Chip Type: MMC
Version:    5.0
Speed:    52000000Hz
Bus Width: 8bit
Boot Addr: 0 Bytes

Boot Env on eMMC
Env Offset:       0x00100000
Env Size:          0x00010000
Env Range:          0x00010000
HI_OTP_LockIdWord,327: ID_WORD have already been locked

SDK Version: HiSTBAndroidV600R001C00SPC063_v2015120719

Security Begin Read RSA Key!
Secure boot is enabled
boot_select = recovery
Start Audio enable!!!skyworth board!!!
bootargs:console=ttyAMA0,115200 blkdevparts=mmcblk0:1M(fastboot),1M(bootargs),10M(recovery),2M(deviceinfo),8M(baseparam),8M(pqparam),20M(logo),20M(logobak),40M(fastplay),40M(fastplaybak),40M(kernel),20M(misc),8M(userapi),8M(hibdrv),8M(qbflag),300M(qbdata),800M(system),1024M(userdata),500M(cache),8M(macid),64M(skparam),400M(skbackup),50M(private),-(sdcard) cohernet_pool=1M
==Enter recovery!
recoverybootargs:console=ttyAMA0,115200 blkdevparts=mmcblk0:1M(fastboot),1M(bootargs),10M(recovery),2M(deviceinfo),8M(baseparam),8M(pqparam),20M(logo),20M(logobak),40M(fastplay),40M(fastplaybak),40M(kernel),20M(misc),8M(userapi),8M(hibdrv),8M(qbflag),300M(qbdata),800M(system),1024M(userdata),500M(cache),8M(macid),64M(skparam),400M(skbackup),50M(private),-(sdcard) cohernet_pool=1M --hpm62
Automatic boot of image at addr 0x01000000 ...
Check Hisilicon_ADVCA ...
Not hisilicon ADVCA image ...
## Booting kernel from Legacy Image at 01000000 ...
Image Name: Linux-3.10.0_s40
Image Type: ARM Linux Kernel Image (uncompressed)
Data Size: 2689352 Bytes = 2.6 MiB
Load Address: 02000000
Entry Point:  02000000
Loading Kernel Image ... OK
OK

Starting kernel ...

Uncompressing Linux... done, booting the kernel.
Booting Linux on physical CPU 0x0
Linux version 3.10.0_s40 (lijingchao@RD4TEAM) (gcc version 4.4.1 (Hisilicon_v200(gcc4.4-290+glibc-2.11+eabi+nptl)) ) #1 Thu Nov 3 01:20:53 CST 2016
CPU: ARMv7 Processor [410fc075] revision 5 (ARMv7), cr=10c53c7d
CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache
Machine: bigfish
Ignoring unrecognised tag 0x726d6d74
cma: CMA: reserved 436 MiB at 14400000
cma: CMA: reserved 4 MiB at 14000000
Memory policy: ECC disabled, Data cache writeback
CPU: All CPU(s) started in SVC mode.
CPU: Hi3798Mv100
Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 147984
Kernel command line: console=ttyAMA0,115200 blkdevparts=mmcblk0:1M(fastboot),1M(bootargs),10M(recovery),2M(deviceinfo),8M(baseparam),8M(pqparam),20M(logo),20M(logobak),40M(fastplay),40M(fastplaybak),40M(kernel),20M(misc),8M(userapi),8M(hibdrv),8M(qbflag),300M(qbdata),800M(system),1024M(userdata),500M(cache),8M(macid),64M(skparam),400M(skbackup),50M(private),-(sdcard) cohernet_pool=1M --hpm62 mem=1G mmz=ddr,0,0,435M
PID hash table entries: 2048 (order: 1, 8192 bytes)
Dentry cache hash table entries: 65536 (order: 6, 262144 bytes)
Inode-cache hash table entries: 32768 (order: 5, 131072 bytes)
Memory: 320MB 264MB = 584MB total
Memory: 575016k/575016k available, 473560k reserved, 264576K highmem
Virtual kernel memory layout:
vector  : 0xffff0000 - 0xffff1000 ( 4 kB)
fixmap  : 0xfff00000 - 0xfffe0000 ( 896 kB)
vmalloc : 0xf0000000 - 0xff000000 ( 240 MB)
lowmem  : 0xc0000000 - 0xef800000 ( 760 MB)
pkmap : 0xbfe00000 - 0xc0000000 ( 2 MB)
modules : 0xbf000000 - 0xbfe00000 (  14 MB)
   .text : 0xc0008000 - 0xc0504050 (5105 kB)
   .init : 0xc0505000 - 0xc06d4324 (1853 kB)
   .data : 0xc06d6000 - 0xc070ef78 ( 228 kB)
   .bss : 0xc070ef78 - 0xc0788578 ( 486 kB)
SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
NR_IRQS:192
sched_clock: 32 bits at 24MHz, resolution 41ns, wraps every 178956ms
Calibrating delay loop... 1949.69 BogoMIPS (lpj=974848)
pid_max: default: 32768 minimum: 301
Mount-cache hash table entries: 512
CPU: Testing write buffer coherency: ok
ftrace: allocating 14405 entries in 43 pages
Setting up static identity map for 0xc0361788 - 0xc03617e0
NET: Registered protocol family 16
DMA: preallocated 256 KiB pool for atomic coherent allocations
Serial: AMBA PL011 UART driver
uart:0: ttyAMA0 at MMIO 0xf8b00000 (irq = 81) is a PL011 rev2
console [ttyAMA0] enabled
uart:1: ttyAMA1 at MMIO 0xf8006000 (irq = 82) is a PL011 rev2
uart:2: ttyAMA2 at MMIO 0xf8b02000 (irq = 83) is a PL011 rev2
bio: create slab <bio-0> at 0
SCSI subsystem initialized
usbcore: registered new interface driver usbfs
usbcore: registered new interface driver hub
usbcore: registered new device driver usb
Switching to clocksource timer3
NET: Registered protocol family 1
bounce pool size: 64 pages
NTFS driver 2.1.30 [Flags: R/O].
msgmni has been set to 606
Block layer SCSI generic (bsg) driver version 0.4 loaded (major 254)
io scheduler noop registered
io scheduler deadline registered (default)
io scheduler cfq registered
brd: module loaded
Found Nand Flash Controller V610.
Nand ID: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
No NAND device found
ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
hiusb-ehci hiusb-ehci.0: HIUSB EHCI
hiusb-ehci hiusb-ehci.0: new USB bus registered, assigned bus number 1
hiusb-ehci hiusb-ehci.0: irq 98, io mem 0xf9890000
hiusb-ehci hiusb-ehci.0: USB 0.0 started, EHCI 1.00
hub 1-0:1.0: USB hub found
hub 1-0:1.0: 2 ports detected
hiusb-ehci hiusb-ehci.1: HIUSB EHCI
hiusb-ehci hiusb-ehci.1: new USB bus registered, assigned bus number 2
hiusb-ehci hiusb-ehci.1: irq 94, io mem 0xf9930000
hiusb-ehci hiusb-ehci.1: USB 0.0 started, EHCI 1.00
hub 2-0:1.0: USB hub found
hub 2-0:1.0: 1 port detected
usbcore: registered new interface driver usb-storage
usb 2-1: new high-speed USB device number 2 using hiusb-ehci
mmc0: BKOPS_EN bit is not set
mmc0: new high speed DDR MMC card at address 0001
mmcblk0: mmc0:0001 4FPD3R 3.64 GiB
mmcblk0boot0: mmc0:0001 4FPD3R partition 1 4.00 MiB
mmcblk0boot1: mmc0:0001 4FPD3R partition 2 4.00 MiB
mmcblk0: p1(fastboot) p2(bootargs) p3(recovery) p4(deviceinfo) p5(baseparam) p6(pqparam) p7(logo) p8(logobak) p9(fastplay) p10(fastplaybak) p11(kernel) p12(misc) p13(userapi) p14(hibdrv) p15(qbflag) p16(qbdata) p17(system) p18(userdata) p19(cache) p20(macid) p21(skparam) p22(skbackup) p23(private) p24(sdcard)
mmcblk0boot1: unknown partition table
mmcblk0boot0: unknown partition table
ashmem: initialized
logger: created 256K log 'log_main'
logger: created 256K log 'log_events'
logger: created 256K log 'log_radio'
logger: created 256K log 'log_system'
VFP support v0.3: implementor 41 architecture 2 part 30 variant 7 rev 5
g_skHPM62=--hpm62 mem=1G mmz=ddr,0,0,435M!!!skyworth board!!!
g_skHPM64=(null)!!!skyworth board!!!
g_skHPM63=(null)!!!skyworth board!!!
g_skHPM68=(null)!!!skyworth board!!!
g_skWEN11=(null)!!!skyworth board!!!
g_skHPM6B=(null)!!!skyworth board!!!
mmc1: new high speed SD card at address 0002
mmcblk1: mmc1:0002    967 MiB
mmcblk1: p1
Load hi_tde.ko success.

11651189 · 发表于 2016-12-14 15:00

Load hi_fb.ko success. (SDK_VERSION:[HiSTBAndroidV600R001C00SPC064_v2016060803] Build Time:[Nov  3 2016, 01:20:38])
Load hi_png.ko success. (SDK_VERSION:[HiSTBAndroidV600R001C00SPC064_v2016060803] Build Time:[Nov  3 2016, 01:20:36])
Warning: unable to open an initial console.
Freeing unused kernel memory: 1852K (c0505000 - c06d4000)
init: could not import file '/init.recovery.bigfish.rc' from '/init.rc'
init: /dev/hw_random not found
init: property 'ro.serialno' doesn't exist while expanding '${ro.serialno}'
init: cannot expand '${ro.serialno}' while writing to '/sys/class/android_usb/android0/iSerial'
init: /dev/hw_random not found
init: Unable to open persistent property directory /data/property errno: 2
init: property 'sys.powerctl' doesn't exist while expanding '${sys.powerctl}'
__bionic_open_tzdata: couldn't find any init: powerctl: cannot expand '${sys.powerctl}'
tzdata when looking for Asia/Shanghai!
__bionic_open_tzdata: couldn't find any tzdata when looking for EXT4-fs (mmcblk0p19): mounted filesystem with ordered data mode. Opts:
GMT!
__bionic_open_tzdata: couldn't find any tzdata when looking for posixrules!
Starting recovery on Thu Jan  1 00:00:01 1970          (从这里开始好像是进入RECOVERY进行自动更新了)
Success to open ir dev!
Create ir sample thread
I:Load the recovery.emmc.fstab
recovery filesystem table
=========================
  0 /fastboot emmc /dev/block/platform/hi_mci.1/by-name/fastboot 0
  1 /bootargs emmc /dev/block/platform/hi_mci.1/by-name/bootargs 0
  2 /recovery emmc /dev/block/platform/hi_mci.1/by-name/recovery 0
  3 /baseparam emmc /dev/block/platform/hi_mci.1/by-name/baseparam 0
  4 /logo emmc /dev/block/platform/hi_mci.1/by-name/logo 0
  5 /fastplay emmc /dev/block/platform/hi_mci.1/by-name/fastplay 0
  6 /boot emmc /dev/block/platform/hi_mci.1/by-name/kernel 0
  7 /userapi emmc /dev/block/platform/hi_mci.1/by-name/userapi 0
  8 /hibdrv emmc /dev/block/platform/hi_mci.1/by-name/hibdrv 0
  9 /misc emmc /dev/block/platform/hi_mci.1/by-name/misc 0
  10 /system ext4 /dev/block/platform/hi_mci.1/by-name/system 0
  11 /data ext4 /dev/block/platform/hi_mci.1/by-name/userdata 0
  12 /cache ext4 /dev/block/platform/hi_mci.1/by-name/cache 0
  13 /private ext4 /dev/block/platform/hi_mci.1/by-name/private 0
  14 /mnt/skparam ext4 /dev/block/platform/hi_mci.1/by-name/skparam 0
  15 /mnt/skbackup ext4 /dev/block/platform/hi_mci.1/by-name/skbackup 0
  16 /sdcard auto /dev/block/sda1 0
  17 /tmp ramdisk ramdisk 0

I:Boot command: boot-recovery
E:fail to open [/cache/recovery/uuid]
I:Got arguments from boot message
I:Got arguments from /cache/recovery/command
locale is [zh_CN]
E:[sk_ui_init][773]
failed to read font: res=-1
can't open /dev/tty0: No such file or directory
framebuffer: fd 4 (1280 x 720)
ioctl(): blank: Invalid argument
ioctl(): blank: Invalid argument
E:[dfb_width=1280],[dfb_heigth=720]
Command: "recovery" "--update_package=CACHE:update.zip" "--locale=zh_CN"
(replacing path "CACHE:update.zip" with "/cache/update.zip")

ro.hs.security.l1.enable=true
ro.sf.lcd_density=160
ro.adb.secure=1
ro.com.android.dateformat=MM-dd-yyyy
ro.com.widevine.cachesize=16777216
ro.fuse.support=false
ro.wifi.channels=
ro.allow.mock.location=1
ro.board.platform=bigfish
ro.build.id=KOT49H
ro.build.date=Thu Nov  3 00:08:42 CST 2016
ro.build.date.utc=1478102922
ro.build.host=RD4TEAM
ro.build.tags=dev-keys
ro.build.type=eng
ro.build.user=lijingchao
ro.build.display.id=Hi3798MV100-eng 4.4.2 KOT49H eng.lijingchao.20161103.000657 dev-keys
ro.build.product=Hi3798MV100
ro.build.version.sdk=19
ro.build.version.hard=1903
ro.build.version.release=4.4.2
ro.build.version.codename=REL
ro.build.version.incremental=CWV100000P0009
ro.build.hardware.id=1903
ro.build.description=Hi3798MV100-eng 4.4.2 KOT49H eng.lijingchao.20161103.000657 dev-keys
ro.build.fingerprint=SKYWORTH/Hi3798MV100/Hi3798MV100:4.4.2/KOT49H/eng.lijingchao.20161103.000657:eng/dev-keys
ro.build.characteristics=tablet
ro.dolby.dmacert.enable=false
ro.dolby.dvbcert.enable=false
ro.dolby.iptvcert.enable=false
ro.pmqos.enable=true
ro.config.low_ram=false
ro.config.ringtone=Ring_Synth_04.ogg
ro.config.alarm_alert=Alarm_Classic.ogg
ro.config.tde_compose=true
ro.config.notification_sound=pixiedust.ogg
ro.kernel.android.checkjni=false
ro.secure=0
ro.carrier=unknown
ro.product.cpu.abi=armeabi-v7a
ro.product.cpu.abi2=armeabi
ro.product.cpu.info=4cores1.5GHz
ro.product.mem.info=1G
ro.product.mem.size=1g
ro.product.name=Hi3798MV100
ro.product.board=bigfish
ro.product.brand=SKYWORTH
ro.product.flash.info=4G
ro.product.model=E900
ro.product.patch=SPC060+patch13
ro.product.device=Hi3798MV100
ro.product.locale.region=CN
ro.product.locale.language=zh
ro.product.target=telecom
ro.product.manufacturer=SKYWORTH
ro.baseband=unknown
ro.bootmode=unknown
ro.hardware=bigfish
ro.opengles.version=131072
ro.revision=0
ro.serialno=
ro.laterscan.enable=true
ro.toastshow.enable=false
ro.bootloader=unknown
ro.debuggable=1
ro.lockscreen.disable.default=true
ro.thirdparty.dhcp=false
ro.factorytest=0
ro.mediaScanner.enable=false
ro.defaultStorage.enable=false
drm.client.enabled=false
drm.service.enabled=true
drm.widevine.debug=false
gsm.version.baseband=HiSTBAndroidV600R001C00SPC064
net.bt.name=Android
net.change=net.bt.name
sys.qb.reload=load_persist_props
init.svc.adbd=restarting
init.svc.ueventd=running
init.svc.recovery=running
qemu.hw.mainkeys=0
wifi.interface=wlan0
debug.hwui.render_dirty_regions=false
dalvik.vm.heapsize=256m
dalvik.vm.heapmaxfree=2m
dalvik.vm.heapminfree=512k
dalvik.vm.heapstartsize=5m
dalvik.vm.heapgrowthlimit=96m
dalvik.vm.stack-trace-file=/data/anr/traces.txt
dalvik.vm.heaptargetutilization=0.75
android.os.Build.MODEL=E900
android.os.Build.MANUFACTURER=SKYWORTH
persist.sys.ui.hw=true
persist.sys.usb.config=none
persist.sys.boot.optimize=true
persist.sys.cvbs.and.hdmi=true
persist.sys.audio.hdmi.output=2
persist.sys.audio.spdif.output=2
persist.sys.samba.status=true
persist.sys.video.cvrs=0
persist.sys.video.adaptformat=false
persist.sys.dalvik.vm.lib=libdvm.so
persist.sys.player.cache.low=500
persist.sys.player.cache.high=12000
persist.sys.player.cache.type=time
persist.sys.player.cache.total=20000
persist.sys.player.avsync.min=500
persist.sys.player.buffer.seek=0
persist.sys.player.leftbuf.min=10
persist.sys.player.bufmaxsize=80
persist.sys.zygote.optimize=true
persist.sys.bootanim.enable=true
persist.sys.fastplay.fullyplay=false
persist.sys.hiplayer.vo.freeze=false
persist.sys.hiplayer.rtspusetcp=false
persist.sys.timezone=Asia/Shanghai
persist.sys.optimalfmt.enable=0
persist.sys.optimalfmt.perfer=native
persist.sys.softdetector.enable=false
persist.sys.screenorientation=landscape
persist.karaoke.enable=true
persist.low_ram.wp.enable=false
persist.suspend.mode=deep_restart
persist.ethernet.wifidisguise=false
service.media.codec.overlay=false
service.media.hiplayer.graphic=false
service.media.hiplayer.nostatic=true
hibrowser.default.fullscreen=true

E:[iconWidth=500],[iconHeight=95],[iconX=390],[iconY=120]
E:[iconWidth=777],[iconHeight=93],[iconX=251],[iconY=313]
update_package=/cache/update.zip
I:Update location: /cache/update.zip
I:read key e=65537 hash=20
I:1 key(s) loaded from /res/keys
I:[sk_ui_draw_progress_show_progress_scale][896] scale=0.250000,seconds=60
I:[sk_ui_draw_progress_show_progress_scale][924] 0.250000,scale=0.250000,last_total=0.000000
I:[sk_ui_draw_progress_set_progress_scale][888] 0.000000
I:comment is 1728 bytes; signature 1710 bytes from end
I:[sk_ui_draw_progress_set_progress_scale][888] 0.000010
E:[iconWidth=500],[iconHeight=95],[iconX=390],[iconY=120]
E:[iconWidth=777],[iconHeight=93],[iconX=251],[iconY=313]
I:[sk_ui_draw_progress_set_progress_scale][888] 0.020016
I:[sk_ui_draw_progress_set_progress_scale][888] 0.040022
I:[sk_ui_draw_progress_set_progress_scale][888] 0.060028
I:[sk_ui_draw_progress_set_progress_scale][888] 0.080033
I:[sk_ui_draw_progress_set_progress_scale][888] 0.100039
I:[sk_ui_draw_progress_set_progress_scale][888] 0.120045
I:[sk_ui_draw_progress_set_progress_scale][888] 0.140051
I:[sk_ui_draw_progress_set_progress_scale][888] 0.160057
I:[sk_ui_draw_progress_set_progress_scale][888] 0.180063
I:[sk_ui_draw_progress_set_progress_scale][888] 0.200069
I:[sk_ui_draw_progress_set_progress_scale][888] 0.220075
I:[sk_ui_draw_progress_set_progress_scale][888] 0.240081
I:[sk_ui_draw_progress_set_progress_scale][888] 0.260086
I:[sk_ui_draw_progress_set_progress_scale][888] 0.280092
I:[sk_ui_draw_progress_set_progress_scale][888] 0.300098
I:[sk_ui_draw_progress_set_progress_scale][888] 0.320104
I:[sk_ui_draw_progress_set_progress_scale][888] 0.340110
I:[sk_ui_draw_progress_set_progress_scale][888] 0.360116
I:[sk_ui_draw_progress_set_progress_scale][888] 0.380122
I:[sk_ui_draw_progress_set_progress_scale][888] 0.400128
I:[sk_ui_draw_progress_set_progress_scale][888] 0.420134
I:[sk_ui_draw_progress_set_progress_scale][888] 0.440139
I:[sk_ui_draw_progress_set_progress_scale][888] 0.460145
I:[sk_ui_draw_progress_set_progress_scale][888] 0.480151
I:[sk_ui_draw_progress_set_progress_scale][888] 0.500157
I:[sk_ui_draw_progress_set_progress_scale][888] 0.520163
I:[sk_ui_draw_progress_set_progress_scale][888] 0.540169
I:[sk_ui_draw_progress_set_progress_scale][888] 0.560175
I:[sk_ui_draw_progress_set_progress_scale][888] 0.580181
I:[sk_ui_draw_progress_set_progress_scale][888] 0.600187
I:[sk_ui_draw_progress_set_progress_scale][888] 0.620192
I:[sk_ui_draw_progress_set_progress_scale][888] 0.640198
I:[sk_ui_draw_progress_set_progress_scale][888] 0.660204
I:[sk_ui_draw_progress_set_progress_scale][888] 0.680210
I:[sk_ui_draw_progress_set_progress_scale][888] 0.700216
I:[sk_ui_draw_progress_set_progress_scale][888] 0.720222
I:[sk_ui_draw_progress_set_progress_scale][888] 0.740228
I:[sk_ui_draw_progress_set_progress_scale][888] 0.760234
I:[sk_ui_draw_progress_set_progress_scale][888] 0.780240
I:[sk_ui_draw_progress_set_progress_scale][888] 0.800245
I:[sk_ui_draw_progress_set_progress_scale][888] 0.820251
I:[sk_ui_draw_progress_set_progress_scale][888] 0.840257
I:[sk_ui_draw_progress_set_progress_scale][888] 0.860263
I:[sk_ui_draw_progress_set_progress_scale][888] 0.880269
I:[sk_ui_draw_progress_set_progress_scale][888] 0.900275
I:[sk_ui_draw_progress_set_progress_scale][888] 0.920281
I:[sk_ui_draw_progress_set_progress_scale][888] 0.940287
I:[sk_ui_draw_progress_set_progress_scale][888] 0.960293
I:[sk_ui_draw_progress_set_progress_scale][888] 0.980298
I:failed to verify against key 0
E:failed to verify whole-file signature
I:verify_file returned 1
E:signature verification failed
Installation aborted.
E:[iconWidth=500],[iconHeight=95],[iconX=390],[iconY=120]
E:[iconWidth=777],[iconHeight=93],[iconX=251],[iconY=313]
I:Saving locale "zh_CN"

[25876 ERROR-HI_IR]:IR_Read[730]:wait data err.（这里好像提示更新不成功，机器就自动重启）
Restarting system with command ''.

CPU will restart.t
Bootrom start
Boot from eMMC
Initializing DDR ... OK
Starting DDR training ... OK
Starting fastboot ...

System startup

Reg Version:  v1.1.0
Reg Time:    2016/1/18  14:01:18
Reg Name:    hi3798mdmo1g_hi3798mv100_ddr3_1gbyte_16bitx2_4layers_emmc.reg

Relocate Boot to DDR

Jump to DDR

lys123 · 发表于 2016-12-14 21:39

和我一样我也在找刷机固件没有！！！！

11651189 · 发表于 2016-12-14 21:43

lys123 发表于 2016-12-14 21:39
和我一样我也在找刷机固件没有！！！！

你说的“和我一样”是指：你和我一样在找固件？还是和我机器出现的问题一样呢？

11651189 · 发表于 2016-12-14 22:02

我当初网上学习教程破解E900安装第三方软件成功后，原创写了篇《四川电信创维E900安装APP方法》教程，发表在“百度文库”http://wenku.baidu.com/link?url= ... U1kiUtDmXfMFoGAAbua，同时发表在“数码之家”论坛http://bbs.mydigit.cn/read.php?tid=1739932，
还发表在“数码之家”拆机帖http://bbs.mydigit.cn/read.php?tid=1714095，
还有我的QQ空间http://user.qzone.qq.com/11651189/main。
可以看机器的MAC或者条码核实，手里还有该文章的WORD原始文档。
哪想到我原创的文章被人转来发表到智能电视网，转发到了这里https://www.znds.com/tv-512308-1-1.html出乎意料，不谴责人家，反正也是分享给大家共同研讨的嘛。如今盒子不能升级，只有声音没图像，还得靠大神们搭救我呢！

11651189 · 发表于 2016-12-15 11:43

找到问题原因了：
I:failed to verify against key 0                                  （对密钥进行验证失败）
E:failed to verify whole-file signature                      （无法验证整个文件签名）
I:verify_file returned 1                                              （验证文件返回）
E:signature verification failed                                     （签名验证失败）
Installation aborted.                                                    （安装失败）
I:Saving locale "zh_CN"
[25876 ERROR-HI_IR]:IR_Read[730]:wait data err.
Restarting system with command ''.                         （命令重新启动系统）

从以上TTL返回的信息看到，我的盒子E900升级过程中是因为升级包签名验证失败导致不能升级。升级包是盒子通过光纤连接官方下载的，签名应该没问题。我的盒子2016年8月份被我刷了一个第三方recovery搞得不能开机，找电信售后返修，拿回来开机会显示网络上有重名，可能是被刷入了另外一个E900的固件。
   现在想求一个能用于E900的第三方recovery，希望不需要升级包签名认证来升级。E900的芯片是Hi3798M V100。

x_man88 · 发表于 2016-12-15 11:55

学习了我看看现在还是不太懂

11651189 · 发表于 2016-12-15 12:03

另外，在网上看教程，短接主板两个预留焊点，能从U盘启动recovery,下载教程中的recovery.img bootargs.bin fastboot.bin三个文件放进U盘，启动盒子，读取U盘一下，然后什么都没有了，不能进入recovery.
TTL返回信息：
Bootrom start
Boot from eMMC
Entry usb bootstrap
Udisk(1):
（光标在此一直不动了）

有人能教做一个适合E900的从U盘启动的recovery吗？

› 你问我答 / 玩机教程 / 固件 › ZNDS刷机/救砖

创维E900更新失败，现在只有声音没有图像，求修复，求刷 ...

创维E900更新失败，现在只有声音没有图像，求修复，求刷机

相关帖子
