本帖最后由 八云红 于 2025-11-20 09:04 编辑
求大佬帮忙看看是不是硬件损坏，不是的话该怎么救砖之前到手一个趣书算云的PCDN电视盒子，芯片是晶晨S905L3-B，根据主板布局还有短接点+芯片判断盒子应该是创维的E900V21D，然后之前试图把Armbian写入盒子的EMMC，然后不知道哪一步出错了，盒子不开机了，然后线刷S905L3-B的通刷包也刷不进去了，卡7%然后报错“[32030201]UBOOT/获取返回/DiskInitial命令出错”，接TTL后上电一直提示“GXLX2:BL1:3cfee7:42a5ae;FEAT:ADFD318C:0;POC:3;RCY:0;EMMC:800;NAND:82;SD:800;USB:8”，按别的教程敲空格或者回车也没有反应，晶晨线刷工具7%报错时TTL显示“[info]failed”

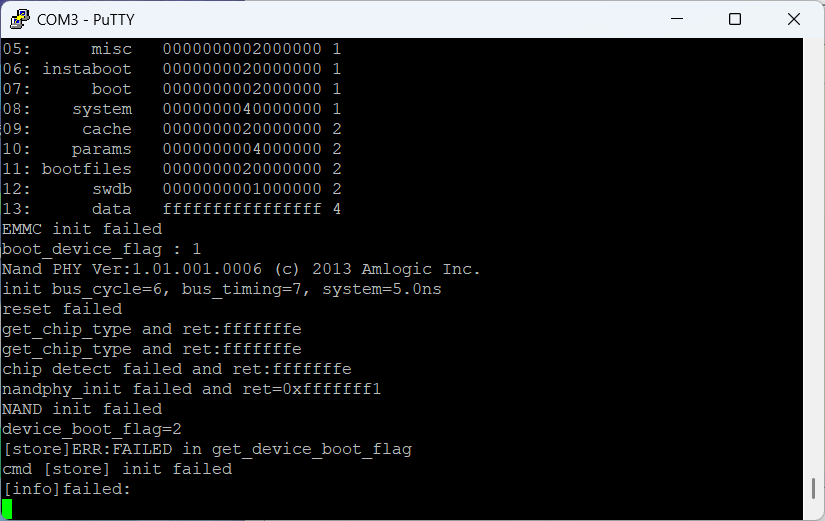

线刷时候TTL的信息
- TE: 1395991036
- BL2 Built : 13:36:55, Jun 22 2020.
- gxl g85d6ad1 - longyong.chen@droid02-sz
- Board ID = 4, adc=303
- set vcck to 1070 mv
- set vddee to 1070 mv
- CARD_3 high, old board
- CPU clk: 1200MHz
- BL2 USB
- DDR3 chl: Rank0+1 @ 792MHz - FAIL
- DDR3 chl: Rank0 @ 792MHz - FAIL
- DDR3 chl: Rank0 16bit @ 792MHz - FAIL
- DDR4 chl: Rank0+1 @ 864MHz - FAIL
- DDR4 chl: Rank0 @ 864MHz
- bist_test rank: 0 28 08 49 3b 1d 59 1f 00 3f 40 23 5e 21 02 41 3f 24 5a 1c 00 39 3e 22 5b 596 - PASS
- Rank0: 2048MB(auto)-2T-18
- 0.0;
- TE: 1397164689
- BL2 Built : 13:36:55, Jun 22 2020.
- gxl g85d6ad1 - longyong.chen@droid02-sz
- Board ID = 4, adc=303
- set vcck to 1070 mv
- set vddee to 1070 mv
- CARD_3 high, old board
- CPU clk: 1200MHz
- BL2 USB
- 0.0;
- TE: 1397349134
- BL2 Built : 13:36:55, Jun 22 2020.
- gxl g85d6ad1 - longyong.chen@droid02-sz
- Board ID = 4, adc=302
- set vcck to 1070 mv
- set vddee to 1070 mv
- CARD_3 high, old board
- CPU clk: 1200MHz
- BL2 USB
- Load fip header from USB, src: 0x0000c000, des: 0x01400000, size: 0x00004000
- New fip structure!
- Load bl30 from USB, src: 0x00010000, des: 0x013c0000, size: 0x00007600
- Load bl301 from USB, src: 0x00018000, des: 0x01380000, size: 0x00002400
- Load bl31 from USB, src: 0x0001c000, des: 0x10100000, size: 0x00019600
- Load bl33 from USB, src: 0x00038000, des: 0x01000000, size: 0x0007b000
- NOTICE: BL3-1: v1.0(debug):361f8a7
- NOTICE: BL3-1: Built : 16:43:26, Dec 19 2018
- NOTICE: BL31: GXL normal boot!
- NOTICE: BL31: BL33 decompress pass
- [Image: gxl_v1.1.3103-9234004 2018-12-27 10:43:23 yao.zhang@droid07]
- efuse init ops = c5
- efuse init hdcp = c, cf9=7
- x2_hp_e = 0
- bl30: check_permit, count is 1
- bl30: check_permit: ok!
- chipid: 0 0 3 c c 0 93 b3 b0 a0 0 c5 not ES chip
- [1397.720641 Inits done]
- INFO: BL3-1: Initializing runtime services
- WARNING: No OPTEE provided by BL2 boot loader
- ERROR: Error initializing runtime service opteed_fast
- INFO: BL3-1: Preparing for EL3 exit to normal world
- INFO: BL3-1: Next image address = 0x1000000
- INFO: BL3-1: Next image spsr = 0x3c9
- U-Boot 2015.01 (Mar 29 2021 - 19:48:51)
- DRAM: 2 GiB
- Relocation Offset is: 76e8c000
- [MSG]MMC init in usb
- aml_priv->desc_buf = 0x0000000073e7c630
- aml_priv->desc_buf = 0x0000000073e7e950
- SDIO Port B: 0, SDIO Port C: 1
- sleep - delay execution for some time
- Usage:
- sleep N
- - delay execution for N seconds (N is _decimal_ !!!)
- Enter USB burn
- Set Addr 52
- Get DT cfg
- Get DT cfg
- Get DT cfg
- Get DT cfg
- Get DT cfg
- set CFG
- ID[16]
- tplcmd[ echo 12345]
- 12345
- [MSG]ret = 0
- [info]success
- BULKcmd[ low_power]
- [info]success
- ID[16]
- tplcmd[ download mem dtb normal 133120]
- [MSG]Down(mem) part(dtb) sz(0x20800) fmt(normal)
- [MSG]totalSlotNum = 0, nextWriteBackSlot 3
- [info]success
- [MSG]Burn Start...
- [MSG]load dt.img to 0x0000000001000000, sz=0x20800
- [MSG]Burn complete
- BULKcmd[download get_status]
- [info]success
- BULKcmd[disk_initial 1]
- dtb magic 08088b1f
- Amlogic multi-dtb tool
- GZIP format, decompress...
- Multi dtb detected
- unified board, board id = 4
- Multi dtb tool version: v2 .
- Support 13 dtbs.
- aml_dt soc: gxlx2 platform: p291 variant: 2g
- dtb 0 soc: gxl plat: p211 vari: 1g
- dtb 1 soc: gxl plat: p211 vari: 512m
- dtb 2 soc: gxl plat: p215 vari: 1g
- dtb 3 soc: gxlx plat: p261 vari: 1g
- dtb 4 soc: gxlx plat: p261 vari: 2g
- dtb 5 soc: gxlx plat: p261 vari: 512m
- dtb 6 soc: gxlx plat: p265 vari: 1g
- dtb 7 soc: gxlx plat: p265 vari: 2g
- dtb 8 soc: gxlx2 plat: p291 vari: 1g
- dtb 9 soc: gxlx2 plat: p291 vari: 2g
- dtb 10 soc: gxlx2 plat: p291 vari: 512m
- dtb 11 soc: gxlx2 plat: p295 vari: 1g
- dtb 12 soc: gxlx2 plat: p295 vari: 2g
- Find match dtb: 9
- start dts,buffer=0000000007700000,dt_addr=0000000007700000
- Amlogic multi-dtb tool
- Single dtb detected
- parts: 14
- 00: logo 0000000002000000 1
- 01: recovery 0000000002000000 1
- 02: rsv 0000000000800000 1
- 03: tee 0000000000800000 1
- 04: crypt 0000000002000000 1
- 05: misc 0000000002000000 1
- 06: instaboot 0000000020000000 1
- 07: boot 0000000002000000 1
- 08: system 0000000040000000 1
- 09: cache 0000000020000000 2
- 10: params 0000000004000000 2
- 11: bootfiles 0000000020000000 2
- 12: swdb 0000000001000000 2
- 13: data ffffffffffffffff 4
- EMMC init failed
- boot_device_flag : 1
- Nand PHY Ver:1.01.001.0006 (c) 2013 Amlogic Inc.
- init bus_cycle=6, bus_timing=7, system=5.0ns
- reset failed
- get_chip_type and ret:fffffffe
- get_chip_type and ret:fffffffe
- chip detect failed and ret:fffffffe
- nandphy_init failed and ret=0xfffffff1
- NAND init failed
- device_boot_flag=2
- [store]ERR:FAILED in get_device_boot_flag
- cmd [store] init failed
- [info]failed:
|
