CM201-1 YS刷完一个包后，再无法刷入任何包

查看数: 28571 | 评论数: 7 | 收藏 0
关灯 | 提示：支持键盘翻页<-左 右->
帖子模式
    组图打开中，请稍候......
574783833
发布时间: 2023-5-28 21:07

正文摘要:

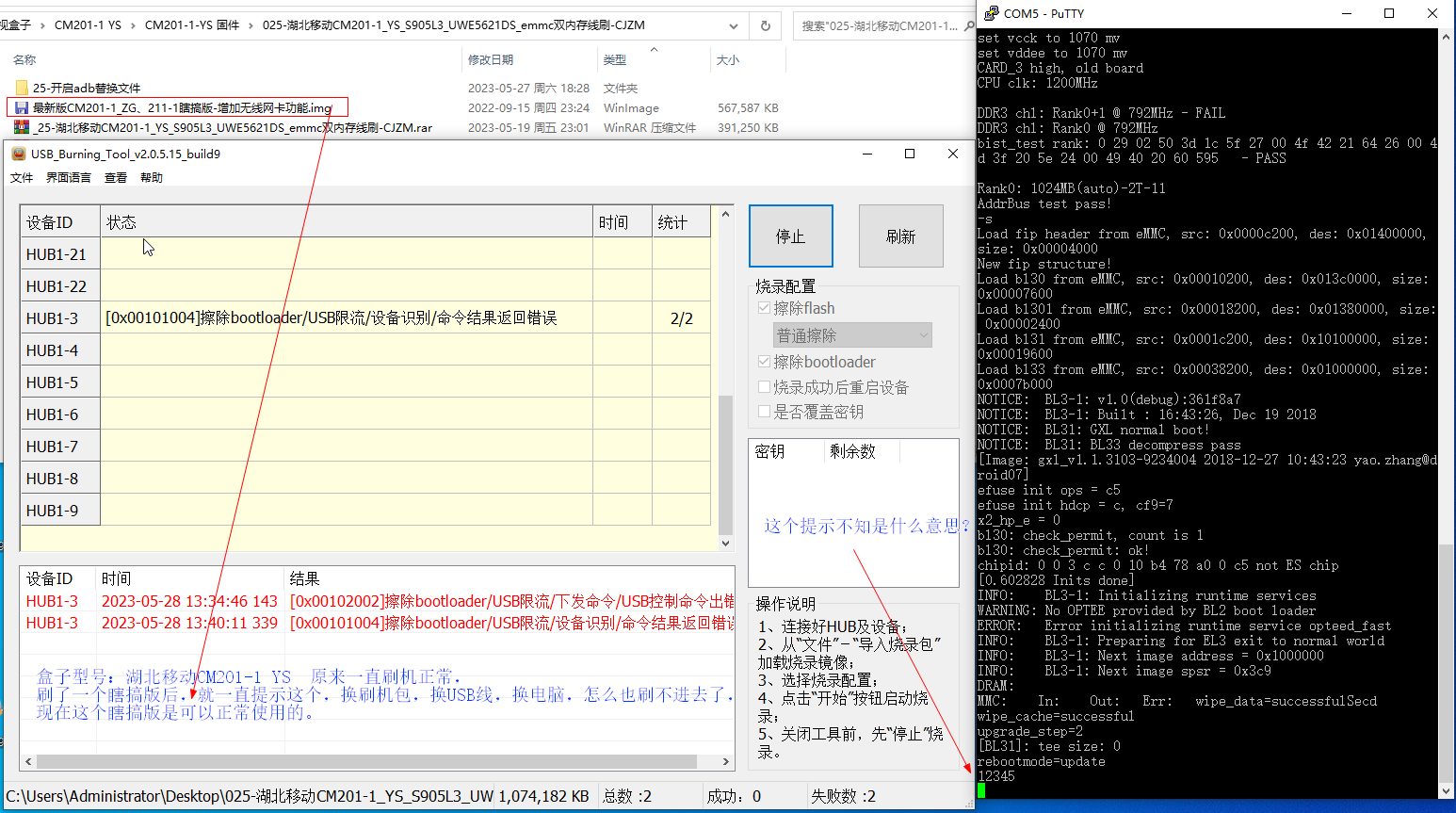

盒子型号:湖北移动CM201-1 YS  原来一直刷机正常, 刷入这个包【最新版CM201-1_ZG、211-1瞎搞版-增加无线网卡功能】后。 再次刷机就一直提示错误，无法刷入任何包， 选中 擦除flash，选中 擦除bootloa ...

回复

g510009| 来自吉林 发表于 2023-12-15 19:32
拆机短接4r12试试
zndslyz94| 来自河南 发表于 2024-4-4 19:07
g510009 发表于 2023-12-15 19:32
拆机短接4r12试试

我的成功了
royalwei| 来自江苏 发表于 2023-12-18 11:20
插电打开开关刷
574783833| 来自北京 发表于 2023-8-23 08:45
574783833| 来自北京 发表于 2023-5-28 21:14
PuTTY输出信息如下：

EMMC:0;READ:0;0.0;CHK:0;
TE: 65853

BL2 Built : 13:36:55, Jun 22 2020.
gxl g85d6ad1 - longyong.chen@droid02-sz

Board ID = 7, adc=557
set vcck to 1070 mv
set vddee to 1070 mv
CARD_3 high, old board
CPU clk: 1200MHz

DDR3 chl: Rank0+1 @ 792MHz - FAIL
DDR3 chl: Rank0 @ 792MHz
bist_test rank: 0 28 01 4f 3e 1c 61 26 00 4d 42 21 64 26 00 4d 3f 20 5f 25 00 4a 40 20 61 595   - PASS

Rank0: 1024MB(auto)-2T-11
AddrBus test pass!
-s
Load fip header from eMMC, src: 0x0000c200, des: 0x01400000, size: 0x00004000
New fip structure!
Load bl30 from eMMC, src: 0x00010200, des: 0x013c0000, size: 0x00007600
Load bl301 from eMMC, src: 0x00018200, des: 0x01380000, size: 0x00002400
Load bl31 from eMMC, src: 0x0001c200, des: 0x10100000, size: 0x00019600
Load bl33 from eMMC, src: 0x00038200, des: 0x01000000, size: 0x0007b000
NOTICE:  BL3-1: v1.0(debug):361f8a7
NOTICE:  BL3-1: Built : 16:43:26, Dec 19 2018
NOTICE:  BL31: GXL normal boot!
NOTICE:  BL31: BL33 decompress pass
[Image: gxl_v1.1.3103-9234004 2018-12-27 10:43:23 yao.zhang@droid07]
efuse init ops = c5
efuse init hdcp = c, cf9=7
x2_hp_e = 0
bl30: check_permit, count is 1
bl30: check_permit: ok!
chipid: 0 0 3 c c 0 10 b4 78 a0 0 c5 not ES chip
[0.597500 Inits done]
INFO:    BL3-1: Initializing runtime services
WARNING: No OPTEE provided by BL2 boot loader
ERROR:   Error initializing runtime service opteed_fast
INFO:    BL3-1: Preparing for EL3 exit to normal world
INFO:    BL3-1: Next image address = 0x1000000
INFO:    BL3-1: Next image spsr = 0x3c9
DRAM:
MMC:    In:    Out:   Err:   wipe_data=successfulSecd
wipe_cache=successful
upgrade_step=2
[BL31]: tee size: 0
rebootmode=cold_boot


OK
OK
OK
[    0.000000@0] Initializing cgroup subsys cpu
[    0.000000@0] Initializing cgroup subsys cpuacct
[    0.000000@0] Linux version 3.14.29-g18c40508-dirty (yuchangming@T2) (gcc version 4.9.1 20140529 (prerelease) (crosstool-NG linaro-1.13.1-4.9-2014.07 - Linaro GCC 4.9-2014.06) ) #2 SMP PREEMPT Fri Feb 26 19:44:54 CST 2021
[    0.000000@0] CPU: ARMv71 Processor [410fd034] revision 4
[    0.000000@0] bootconsole [earlycon0] enabled
get_dvfs_info 0007
INFO:    HDCP22 key read fail!
INFO:    p1d 0
INFO:    pd1 0
[BL31]: tee size: 0
[BL31]: tee size: 0
[BL31]: tee size: 0
[BL31]: tee size: 0
WARNING: Unimplemented Sip Call: 0x82000036
root@p201_iptv:/ # reboot update
[   27.493431@0] SysRq : Emergency Remount R/O
INFO:    PSCI Affinity Map:
INFO:      AffInst: Level 0, MPID 0x0, State ON
INFO:      AffInst: Level 0, MPID 0x1, State ON
INFO:      AffInst: Level 0, MPID 0x2, State ON
INFO:      AffInst: Level 0, MPID 0x3, State ON
bl31 reboot reason: 0x1
bl31 reboot reason: 0x3
ERROR:   gxbb System Reset: SCP error 1.
GXLX2:BL1:3cfee7:42a5ae;FEAT:ADFC318C:0;POC:3;RCY:0;EMMC:0;READ:0;0.0;CHK:0;
TE: 65506

BL2 Built : 13:36:55, Jun 22 2020.
gxl g85d6ad1 - longyong.chen@droid02-sz

Board ID = 7, adc=557
set vcck to 1070 mv
set vddee to 1070 mv
CARD_3 high, old board
CPU clk: 1200MHz

DDR3 chl: Rank0+1 @ 792MHz - FAIL
DDR3 chl: Rank0 @ 792MHz
bist_test rank: 0 28 01 50 3e 1c 61 26 00 4d 42 21 64 26 00 4c 3f 20 5f 25 00 4a 40 20 61 601   - PASS

Rank0: 1024MB(auto)-2T-11
AddrBus test pass!
-s
Load fip header from eMMC, src: 0x0000c200, des: 0x01400000, size: 0x00004000
New fip structure!
Load bl30 from eMMC, src: 0x00010200, des: 0x013c0000, size: 0x00007600
Load bl301 from eMMC, src: 0x00018200, des: 0x01380000, size: 0x00002400
Load bl31 from eMMC, src: 0x0001c200, des: 0x10100000, size: 0x00019600
Load bl33 from eMMC, src: 0x00038200, des: 0x01000000, size: 0x0007b000
NOTICE:  BL3-1: v1.0(debug):361f8a7
NOTICE:  BL3-1: Built : 16:43:26, Dec 19 2018
NOTICE:  BL31: GXL normal boot!
NOTICE:  BL31: BL33 decompress pass
[Image: gxl_v1.1.3103-9234004 2018-12-27 10:43:23 yao.zhang@droid07]
efuse init ops = c5
efuse init hdcp = c, cf9=7
x2_hp_e = 0
bl30: check_permit, count is 1
bl30: check_permit: ok!
chipid: 0 0 3 c c 0 10 b4 78 a0 0 c5 not ES chip
[0.595890 Inits done]
INFO:    BL3-1: Initializing runtime services
WARNING: No OPTEE provided by BL2 boot loader
ERROR:   Error initializing runtime service opteed_fast
INFO:    BL3-1: Preparing for EL3 exit to normal world
INFO:    BL3-1: Next image address = 0x1000000
INFO:    BL3-1: Next image spsr = 0x3c9
DRAM:
MMC:    In:    Out:   Err:   wipe_data=successfulSecd
wipe_cache=successful
upgrade_step=2
[BL31]: tee size: 0
rebootmode=update
12345

574783833| 来自北京 发表于 2023-5-28 21:13
有人说，这个固件可能是作者修改成固定MAC了，导致不能刷机，有懂得吗？
574783833| 来自北京 发表于 2023-5-28 21:10
PuTTY输出信息如下：

EMMC:0;READ:0;0.0;CHK:0;
TE: 65853

BL2 Built : 13:36:55, Jun 22 2020.
gxl g85d6ad1 - longyong.chen@droid02-sz

Board ID = 7, adc=557
set vcck to 1070 mv
set vddee to 1070 mv
CARD_3 high, old board
CPU clk: 1200MHz

DDR3 chl: Rank0+1 @ 792MHz - FAIL
DDR3 chl: Rank0 @ 792MHz
bist_test rank: 0 28 01 4f 3e 1c 61 26 00 4d 42 21 64 26 00 4d 3f 20 5f 25 00 4a 40 20 61 595   - PASS

Rank0: 1024MB(auto)-2T-11
AddrBus test pass!
-s
Load fip header from eMMC, src: 0x0000c200, des: 0x01400000, size: 0x00004000
New fip structure!
Load bl30 from eMMC, src: 0x00010200, des: 0x013c0000, size: 0x00007600
Load bl301 from eMMC, src: 0x00018200, des: 0x01380000, size: 0x00002400
Load bl31 from eMMC, src: 0x0001c200, des: 0x10100000, size: 0x00019600
Load bl33 from eMMC, src: 0x00038200, des: 0x01000000, size: 0x0007b000
NOTICE:  BL3-1: v1.0(debug):361f8a7
NOTICE:  BL3-1: Built : 16:43:26, Dec 19 2018
NOTICE:  BL31: GXL normal boot!
NOTICE:  BL31: BL33 decompress pass
[Image: gxl_v1.1.3103-9234004 2018-12-27 10:43:23 yao.zhang@droid07]
efuse init ops = c5
efuse init hdcp = c, cf9=7
x2_hp_e = 0
bl30: check_permit, count is 1
bl30: check_permit: ok!
chipid: 0 0 3 c c 0 10 b4 78 a0 0 c5 not ES chip
[0.597500 Inits done]
INFO:    BL3-1: Initializing runtime services
WARNING: No OPTEE provided by BL2 boot loader
ERROR:   Error initializing runtime service opteed_fast
INFO:    BL3-1: Preparing for EL3 exit to normal world
INFO:    BL3-1: Next image address = 0x1000000
INFO:    BL3-1: Next image spsr = 0x3c9
DRAM:
MMC:    In:    Out:   Err:   wipe_data=successfulSecd
wipe_cache=successful
upgrade_step=2
[BL31]: tee size: 0
rebootmode=cold_boot


OK
OK
OK
[    0.000000@0] Initializing cgroup subsys cpu
[    0.000000@0] Initializing cgroup subsys cpuacct
[    0.000000@0] Linux version 3.14.29-g18c40508-dirty (yuchangming@T2) (gcc version 4.9.1 20140529 (prerelease) (crosstool-NG linaro-1.13.1-4.9-2014.07 - Linaro GCC 4.9-2014.06) ) #2 SMP PREEMPT Fri Feb 26 19:44:54 CST 2021
[    0.000000@0] CPU: ARMv71 Processor [410fd034] revision 4
[    0.000000@0] bootconsole [earlycon0] enabled
get_dvfs_info 0007
INFO:    HDCP22 key read fail!
INFO:    p1d 0
INFO:    pd1 0
[BL31]: tee size: 0
[BL31]: tee size: 0
[BL31]: tee size: 0
[BL31]: tee size: 0
WARNING: Unimplemented Sip Call: 0x82000036
root@p201_iptv:/ # reboot update
[   27.493431@0] SysRq : Emergency Remount R/O
INFO:    PSCI Affinity Map:
INFO:      AffInst: Level 0, MPID 0x0, State ON
INFO:      AffInst: Level 0, MPID 0x1, State ON
INFO:      AffInst: Level 0, MPID 0x2, State ON
INFO:      AffInst: Level 0, MPID 0x3, State ON
bl31 reboot reason: 0x1
bl31 reboot reason: 0x3
ERROR:   gxbb System Reset: SCP error 1.
GXLX2:BL1:3cfee7:42a5ae;FEAT:ADFC318C:0;POC:3;RCY:0;EMMC:0;READ:0;0.0;CHK:0;
TE: 65506

BL2 Built : 13:36:55, Jun 22 2020.
gxl g85d6ad1 - longyong.chen@droid02-sz

Board ID = 7, adc=557
set vcck to 1070 mv
set vddee to 1070 mv
CARD_3 high, old board
CPU clk: 1200MHz

DDR3 chl: Rank0+1 @ 792MHz - FAIL
DDR3 chl: Rank0 @ 792MHz
bist_test rank: 0 28 01 50 3e 1c 61 26 00 4d 42 21 64 26 00 4c 3f 20 5f 25 00 4a 40 20 61 601   - PASS

Rank0: 1024MB(auto)-2T-11
AddrBus test pass!
-s
Load fip header from eMMC, src: 0x0000c200, des: 0x01400000, size: 0x00004000
New fip structure!
Load bl30 from eMMC, src: 0x00010200, des: 0x013c0000, size: 0x00007600
Load bl301 from eMMC, src: 0x00018200, des: 0x01380000, size: 0x00002400
Load bl31 from eMMC, src: 0x0001c200, des: 0x10100000, size: 0x00019600
Load bl33 from eMMC, src: 0x00038200, des: 0x01000000, size: 0x0007b000
NOTICE:  BL3-1: v1.0(debug):361f8a7
NOTICE:  BL3-1: Built : 16:43:26, Dec 19 2018
NOTICE:  BL31: GXL normal boot!
NOTICE:  BL31: BL33 decompress pass
[Image: gxl_v1.1.3103-9234004 2018-12-27 10:43:23 yao.zhang@droid07]
efuse init ops = c5
efuse init hdcp = c, cf9=7
x2_hp_e = 0
bl30: check_permit, count is 1
bl30: check_permit: ok!
chipid: 0 0 3 c c 0 10 b4 78 a0 0 c5 not ES chip
[0.595890 Inits done]
INFO:    BL3-1: Initializing runtime services
WARNING: No OPTEE provided by BL2 boot loader
ERROR:   Error initializing runtime service opteed_fast
INFO:    BL3-1: Preparing for EL3 exit to normal world
INFO:    BL3-1: Next image address = 0x1000000
INFO:    BL3-1: Next image spsr = 0x3c9
DRAM:
MMC:    In:    Out:   Err:   wipe_data=successfulSecd
wipe_cache=successful
upgrade_step=2
[BL31]: tee size: 0
rebootmode=update
12345
