求大大看看TTL链接插针在哪？

查看数: 31219 | 评论数: 10 | 收藏 1

关灯 | 提示：支持键盘翻页<-左右->

帖子模式

orchid_zxg

发布时间: 2022-6-1 11:06

正文摘要:

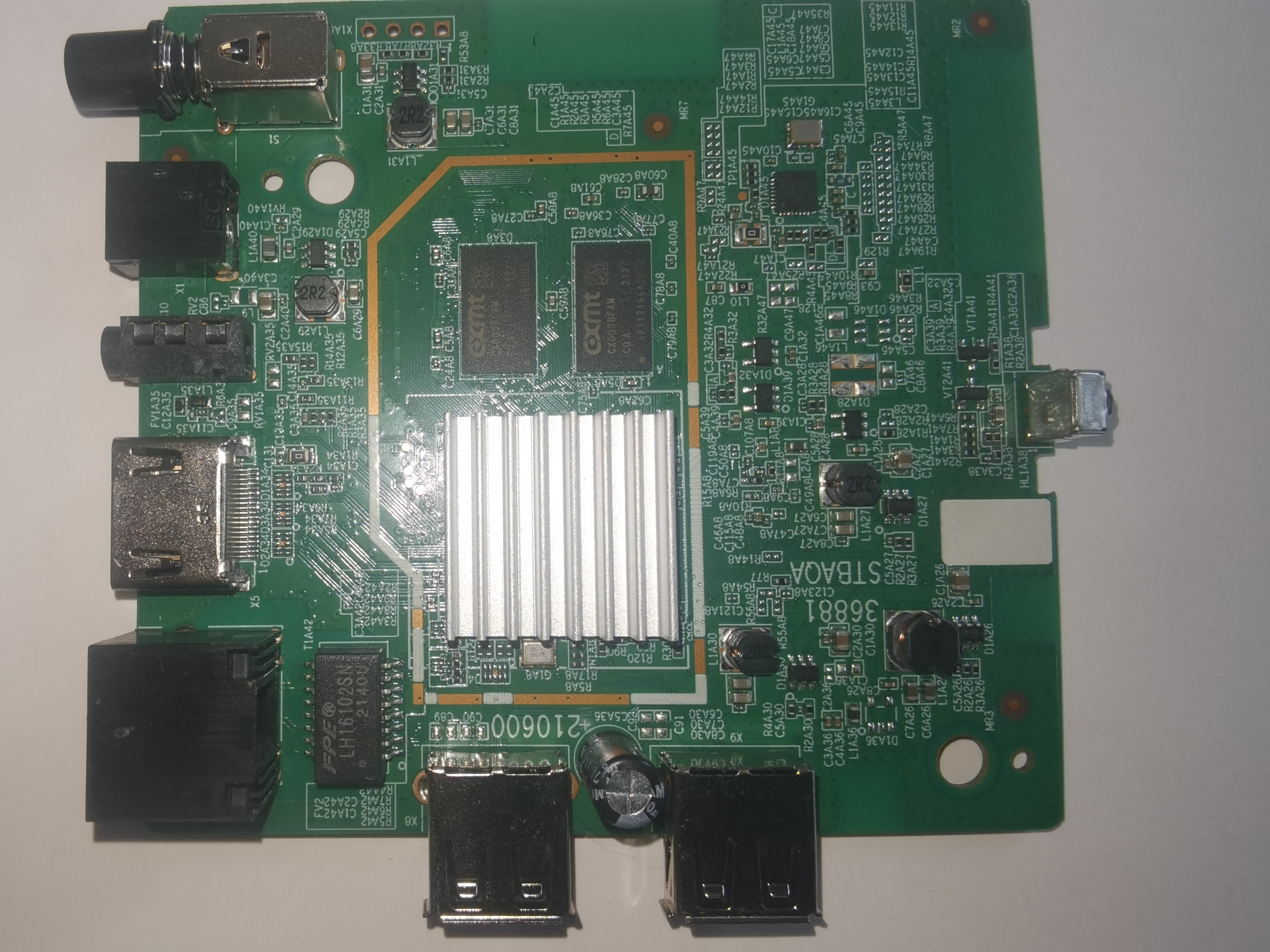

本帖最后由肖元元于 2022-6-1 11:10 编辑哪个是接地？哪个是TXD? RXD?

orchid_zxg| 来自山东 发表于 2022-6-2 09:52

HDCP22 key read fail!跟不能输入命令没有关系，我能输入了。

orchid_zxg| 来自山东 发表于 2022-6-2 05:37

本帖最后由 orchid_zxg 于 2022-6-2 10:25 编辑

不能输入命令，是插针接的不对。1针接地，2接TXD，3接RXD，跑码正常，输入正常。1针接地，3接TXD，4接RXD，跑码正常，不能输入。

qianqun| 来自安徽 发表于 2022-6-1 15:14

不能输入命令，你现在才知道啊！！

orchid_zxg| 来自山东 发表于 2022-6-1 12:56

本帖最后由 orchid_zxg 于 2022-6-1 13:03 编辑

BL2 Built : 13:36:55, Jun 22 2020.
gxl g85d6ad1 - longyong.chen@droid02-sz

Board ID = 2, adc=156
set vcck to 1070 mv
set vddee to 1070 mv
CARD_3 high, old board
CPU clk: 1200MHz

DDR3 chl: Rank0+1 @ 792MHz - FAIL
DDR3 chl: Rank0 @ 792MHz - FAIL
DDR3 chl: Rank0 16bit @ 792MHz - FAIL
DDR4 chl: Rank0+1 @ 864MHz - FAIL
DDR4 chl: Rank0 @ 864MHz
bist_test rank: 0 2f 10 4f 2d 10 4a 1f 00 3f 36 1a 53 2c 0d 4c 2b 10 47 21 03 3f 31 14 4f 609 - PASS

Rank0: 2048MB(auto)-2T-18
AddrBus test pass!
-s
Load fip header from eMMC, src: 0x0000c200, des: 0x01400000, size: 0x00004000
New fip structure!
Load bl30 from eMMC, src: 0x00010200, des: 0x013c0000, size: 0x00007600
Load bl301 from eMMC, src: 0x00018200, des: 0x01380000, size: 0x00002400
Load bl31 from eMMC, src: 0x0001c200, des: 0x10100000, size: 0x00019600
Load bl33 from eMMC, src: 0x00038200, des: 0x01000000, size: 0x0007b000
NOTICE:  BL3-1: v1.0(debug):361f8a7
NOTICE:  BL3-1: Built : 16:43:26, Dec 19 2018
NOTICE:  BL31: GXL normal boot!
NOTICE:  BL31: BL33 decompress pass
[Image: gxl_v1.1.3103-9234004 2018-12-27 10:43:23 yao.zhang@droid07]
efuse init ops = c5
efuse init hdcp = c, cf9=7
x2_hp_e = 0
bl30: check_permit, count is 1
bl30: check_permit: ok!
chipid: 0 0 3 c c 0 6e b3 60 a0 0 c5 not ES chip
[1.050925 Inits done]
INFO: BL3-1: Initializing runtime services
WARNING: No OPTEE provided by BL2 boot loader
ERROR: Error initializing runtime service opteed_fast
INFO: BL3-1: Preparing for EL3 exit to normal world
INFO: BL3-1: Next image address = 0x1000000
INFO: BL3-1: Next image spsr = 0x3c9
DRAM:
MMC: In: Out: Err: wipe_data=successfulSecd
wipe_cache=successful
upgrade_step=2
[BL31]: tee size: 0
rebootmode=cold_boot

OK
OK
OK
[ 0.000000@0] Initializing cgroup subsys cpu
[ 0.000000@0] Initializing cgroup subsys cpuacct
[ 0.000000@0] Linux version 3.14.29-g18c40508-dirty (yuchangming@T2) (gcc version 4.9.1 20140529 (prerelease) (crosstool-NG linaro-1.13.1-4.9-2014.07 - Linaro GCC 4.9-2014.06) ) #2 SMP PREEMPT Fri Feb 26 19:44:54 CST 2021
[ 0.000000@0] CPU: ARMv71 Processor [410fd034] revision 4
[ 0.000000@0] bootconsole [earlycon0] enabled
get_dvfs_info 0002
INFO: HDCP22 key read fail!
INFO: p1d 0
INFO: pd1 0
[BL31]: tee size: 0
[BL31]: tee size: 0
[BL31]: tee size: 0
[BL31]: tee size: 0
WARNING: Unimplemented Sip Call: 0x82000036
root@p201_iptv:/ #
