ZNDS智能电视网»首页 › 综合交流 / 资源分享区 › 综合交流大区 › putty无法输入怎么办？

putty无法输入怎么办？

查看数: 50697 | 评论数: 10 | 收藏 1

关灯 | 提示：支持键盘翻页<-左右->

帖子模式

HHDMGBD

发布时间: 2020-12-6 17:23

正文摘要:

本帖最后由肖元元于 2020-12-6 20:59 编辑 putty打开盒子后正常跑码，但最后无法输入，按什么都没有。

ZHL680| 来自河南 发表于 2024-6-21 11:02

GXLX:BL1:9ac50e:4a8da0;FEAT:ADFD318C:0;POC:3;RCY:0;EMMC:0;READ:0;0.0;CHK:0;
TE: 152648

BL2 Built : 17:15:25, Jun 21 2020.
gxl g85d6ad1 - longyong.chen@droid02-sz

Board ID = 4, adc=303
set vcck to 1120 mv
set vddee to 1000 mv
CPU clk: 1200MHz
DDR3LPower:
DDR3 chl: Rank0+1 @ 912MHz - FAIL
DDR3 chl: Rank0 @ 912MHz
bist_test rank: 0 17 00 2f 2a 12 43 16 00 2d 2e 15 48 19 04 2f 2d 14 47 19 03 2f 2e 13 4a 693 - PASS

Rank0: 1024MB(auto)-2T-13
ssc: ppm1000
AddrBus test pass!
-s
Load fip header from eMMC, src: 0x0000c200, des: 0x01400000, size: 0x00004000
New fip structure!
Load bl30 from eMMC, src: 0x00010200, des: 0x013c0000, size: 0x00007600
Load bl301 from eMMC, src: 0x00018200, des: 0x01380000, size: 0x00002800
Load bl31 from eMMC, src: 0x0001c200, des: 0x10100000, size: 0x00019600
Load bl33 from eMMC, src: 0x00038200, des: 0x01000000, size: 0x00081a00
NOTICE:  BL3-1: v1.0(debug):361f8a7
NOTICE:  BL3-1: Built : 16:43:26, Dec 19 2018
NOTICE:  BL31: GXL normal boot!
NOTICE:  BL31: BL33 decompress pass
[Image: gxl_v1.1.3103-9234004 2018-12-27 10:43:23 yao.zhang@droid07]
efuse init ops = c1
efuse init hdcp = c, cf9=7
x2_hp_e = 0
bl30: check_permit, count is 1
bl30: check_permit: ok!
chipid: 0 0 3 c c 0 31 b3 58 a0 0 c1 not ES chip
[0.690889 Inits done]
INFO: BL3-1: Initializing runtime services
WARNING: No OPTEE provided by BL2 boot loader
ERROR: Error initializing runtime service opteed_fast
INFO: BL3-1: Preparing for EL3 exit to normal world
INFO: BL3-1: Next image address = 0x1000000
INFO: BL3-1: Next image spsr = 0x3c9

U-Boot 2015.01-ge0353cd-dirty (Oct 30 2023 - 22:01:56)

DRAM:  1 GiB
gxlx_p265_1g

[BL31]: tee size: 0

osd_size 720p
switch to partitions #0, OK
mmc1(part 0) is current device
bootmode:NORM
gxlx_p265_1g

IH_COMP_LZOOK
uboot time: 1797876 us
[ 0.000000@0] Initializing cgroup subsys cpu
[ 0.000000@0] Initializing cgroup subsys cpuacct
[ 0.000000@0] CPU: ARMv71 Processor [410fd034] revision 4
[ 0.000000@0] no prop version_code
[ 0.000000@0] bootconsole [earlycon0] enabled
get_dvfs_info 0004
INFO: HDCP22 key read fail!
INFO: p1d 0
INFO: pd1 0
[ ▒[BL31]: tee size: 0
[BL31]: tee size: 0
[BL31]: tee size: 0
[BL31]: tee size: 0
WARNING: Unimplemented Sip Call: 0x82000036
root@p200_2G:/ # [ 13.593521@3] monitor: received netlink message:anstvbw new ok
[ 13.593717@3] monitor:reply
GXLX:BL1:9ac50e:4a8da0;FEAT:ADFD318C:0;POC:3;RCY:0;EMMC:0;READ:0;0.0;CHK:0;
TE: 124679

BL2 Built : 17:15:25, Jun 21 2020.
gxl g85d6ad1 - longyong.chen@droid02-sz

Board ID = 4, adc=303
set vcck to 1120 mv
set vddee to 1000 mv
CPU clk: 1200MHz
DDR3LPower:
DDR3 chl: Rank0+1 @ 912MHz - FAIL
DDR3 chl: Rank0 @ 912MHz
bist_test rank: 0 17 00 2f 2a 12 43 16 00 2d 2f 16 48 19 04 2f 2d 14 47 19 03 2f 2e 13 49 693 - PASS

Rank0: 1024MB(auto)-2T-13
ssc: ppm1000
AddrBus test pass!
-s
Load fip header from eMMC, src: 0x0000c200, des: 0x01400000, size: 0x00004000
New fip structure!
Load bl30 from eMMC, src: 0x00010200, des: 0x013c0000, size: 0x00007600
Load bl301 from eMMC, src: 0x00018200, des: 0x01380000, size: 0x00002800
Load bl31 from eMMC, src: 0x0001c200, des: 0x10100000, size: 0x00019600
Load bl33 from eMMC, src: 0x00038200, des: 0x01000000, size: 0x00081a00
NOTICE:  BL3-1: v1.0(debug):361f8a7
NOTICE:  BL3-1: Built : 16:43:26, Dec 19 2018
NOTICE:  BL31: GXL normal boot!
NOTICE:  BL31: BL33 decompress pass
[Image: gxl_v1.1.3103-9234004 2018-12-27 10:43:23 yao.zhang@droid07]
efuse init ops = c1
efuse init hdcp = c, cf9=7
x2_hp_e = 0
bl30: check_permit, count is 1
bl30: check_permit: ok!
chipid: 0 0 3 c c 0 31 b3 58 a0 0 c1 not ES chip
[0.662670 Inits done]
INFO: BL3-1: Initializing runtime services
WARNING: No OPTEE provided by BL2 boot loader
ERROR: Error initializing runtime service opteed_fast
INFO: BL3-1: Preparing for EL3 exit to normal world
INFO: BL3-1: Next image address = 0x1000000
INFO: BL3-1: Next image spsr = 0x3c9

U-Boot 2015.01-ge0353cd-dirty (Oct 30 2023 - 22:01:56)

DRAM:  1 GiB
gxlx_p265_1g

[BL31]: tee size: 0

osd_size 720p
switch to partitions #0, OK
mmc1(part 0) is current device
bootmode:NORM
gxlx_p265_1g

IH_COMP_LZOOK
uboot time: 1774305 us
[ 0.000000@0] Initializing cgroup subsys cpu
[ 0.000000@0] Initializing cgroup subsys cpuacct
[ 0.000000@0] CPU: ARMv71 Processor [410fd034] revision 4
[ 0.000000@0] no prop version_code
[ 0.000000@0] bootconsole [earlycon0] enabled
get_dvfs_info 0004
INFO: HDCP22 key read fail!
INFO: p1d 0
INFO: pd1 0
[ 1[BL31]: tee size: 0
[BL31]: tee size: 0
[BL31]: tee size: 0
[BL31]: tee size: 0
WARNING: Unimplemented Sip Call: 0x82000036
root@p200_2G:/ # [ 13.619577@2] monitor: received netlink message:anstvbw new ok
[ 13.619765@2] monitor:reply

root@p200_2G:/ #后同样不能输入命令
然后出现[ 13.619577@2] monitor: received netlink message:anstvbw new ok
[ 13.619765@2] monitor:reply
机顶盒关机，是不是被锁定

行者1823| 来自江苏 发表于 2020-12-7 21:13

HHDMGBD 发表于 2020-12-7 13:28
还是不行

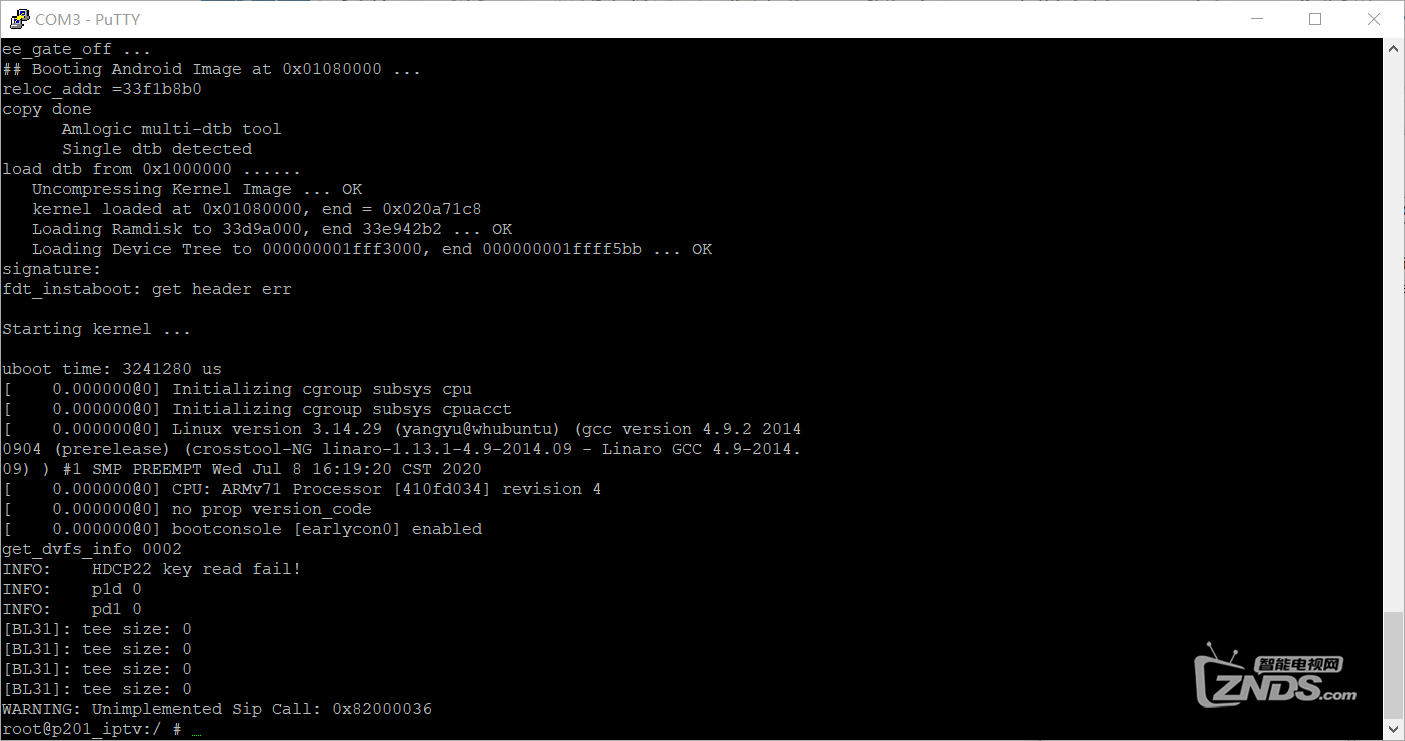

是这样设置的吗？

Starting kernel ...
uboot time: 3028623 us
[ 0.000000@0] Initializing cgroup subsys cpu
[ 0.000000@0] Initializing cgroup subsys cpuacct
[ 0.000000@0] Linux version 3.14.29 (tianhuaxin@RD4TEAM) (gcc version 4.9.2 2 0140904 (prerelease) (crosstool-NG linaro-1.13.1-4.9-2014.09 - Linaro GCC 4.9-20 14.09) ) #1 SMP PREEMPT Thu Mar 21 14:49:59 CST 2019
[ 0.000000@0] CPU: ARMv71 Processor [410fd034] revision 4
[ 0.000000@0] no prop version_code
[ 0.000000@0] bootconsole [earlycon0] enabled
get_dvfs_info 0005
INFO: HDCP22 key read fail!
INFO: p1d 0
INFO: pd1 0
root@p201_iptv:/ #
root@p201_iptv:/ # su

如果还不能输入，你要检查你的TTL线是不是接触不良了。

HHDMGBD| 来自江苏 发表于 2020-12-7 13:28

行者1823 发表于 2020-12-7 13:20

还是不行

行者1823| 来自江苏 发表于 2020-12-7 13:20

HHDMGBD 发表于 2020-12-7 13:16
在哪我找不到

HHDMGBD| 来自江苏 发表于 2020-12-7 13:16

行者1823 发表于 2020-12-7 12:23
你把 RTS/CTS上的钩去掉试试

在哪我找不到

行者1823| 来自江苏 发表于 2020-12-7 12:23

HHDMGBD 发表于 2020-12-7 00:32
有什么好方法吗，或者其他终端

你把 RTS/CTS上的钩去掉试试

HHDMGBD| 来自江苏 发表于 2020-12-7 01:37

行者1823 发表于 2020-12-6 19:35
root@p201_iptv:/ # 这一行都有了，还没法输入命令？
不是TTL的RX接触不良，就是参数没设置好，要不换个超 ...

换成Xshell 6也没用

HHDMGBD| 来自江苏 发表于 2020-12-7 01:37

HHDMGBD 发表于 2020-12-7 00:32
有什么好方法吗，或者其他终端

换成Xshell 6也没用

HHDMGBD| 来自江苏 发表于 2020-12-7 00:32

行者1823 发表于 2020-12-6 19:35
root@p201_iptv:/ # 这一行都有了，还没法输入命令？
不是TTL的RX接触不良，就是参数没设置好，要不换个超 ...

有什么好方法吗，或者其他终端
